LCM-S24064GSF

Active

Lumex Opto/Components Inc.

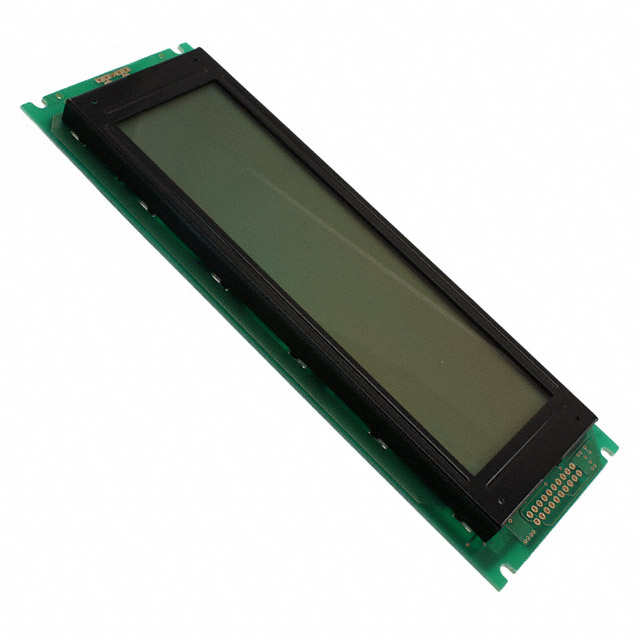

LCD MOD GRAPHIC 240X64 W/LED

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD GRAPHIC 240X64 W/LED

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD GRAPHIC 240X64 REFL STN

Part	Dot Size [custom]	Dot Size [custom]	Backlight	Interface	Display Type	Dot Pixels [y]	Dot Pixels [x]	Display Mode	Viewing Area [custom]	Viewing Area [custom]	Dot Pitch [y]	Dot Pitch [x]	Graphics Color	Background Color
Lumex Opto/Components Inc. LCM-S24064GSR	0.49 mm	0.49 mm	Without Backlight	Parallel, 8-Bit	STN - Super-Twisted Nematic	64	240 pixels	Reflective	40.51 mm	133.99 mm	0.53 mm	0.53 mm
Lumex Opto/Components Inc. LCM-S24064GSF	0.49 mm	0.49 mm		Parallel, 8-Bit	STN - Super-Twisted Nematic	64	240 pixels	Transflective	40.51 mm	133.99 mm	0.53 mm	0.53 mm	Gray	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit 240 x 64

Technical documentation and resources

No documents available
