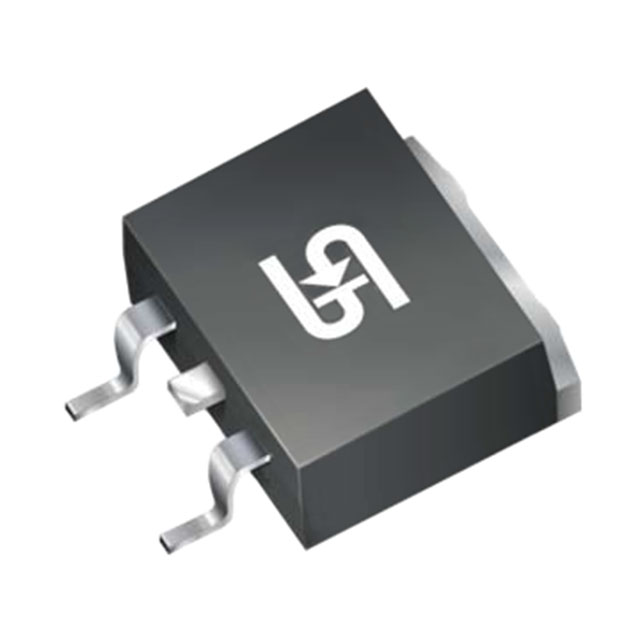

TS2937CM50 RNG

Active

Taiwan Semiconductor Corporation

IC REG LINEAR 5V 500MA TO263

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

IC REG LINEAR 5V 500MA TO263

Technical Specifications

Parameters and characteristics for this part

Specification	TS2937CM50 RNG

Current - Output	500 mA
Current - Supply (Max) [Max]	25 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Protection Features	Transient Voltage, Thermal Shutdown, Over Voltage
Supplier Device Package	TO-263AB (D2PAK)
Voltage - Input (Max) [Max]	26 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.7 V

Part	Number of Regulators	Output Type	Voltage Dropout (Max) [Max]	Mounting Type	Current - Supply (Max) [Max]	Output Configuration	Supplier Device Package	Voltage - Output (Min/Fixed)	Package / Case	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Protection Features
Taiwan Semiconductor Corporation TS2937CM50 RNG	1	1.81 mOhm	0.7 V	Surface Mount	25 mA	Positive	TO-263AB (D2PAK)	5 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	500 mA	-40 °C	125 ¯C	26 V	Over Voltage Thermal Shutdown Transient Voltage
Taiwan Semiconductor Corporation TS2937CM33 RNG	1	1.81 mOhm	0.7 V	Surface Mount	25 mA	Positive	TO-263AB (D2PAK)	3.3 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	500 mA	-40 °C	125 ¯C	26 V	Over Voltage Thermal Shutdown Transient Voltage
Taiwan Semiconductor Corporation TS2937CP50 ROG	1	1.81 mOhm	0.7 V	Surface Mount	25 mA	Positive	TO-252 (DPAK)	5 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	500 mA	-40 °C	125 ¯C	26 V	Over Voltage Thermal Shutdown Transient Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-263AB (D2PAK)
