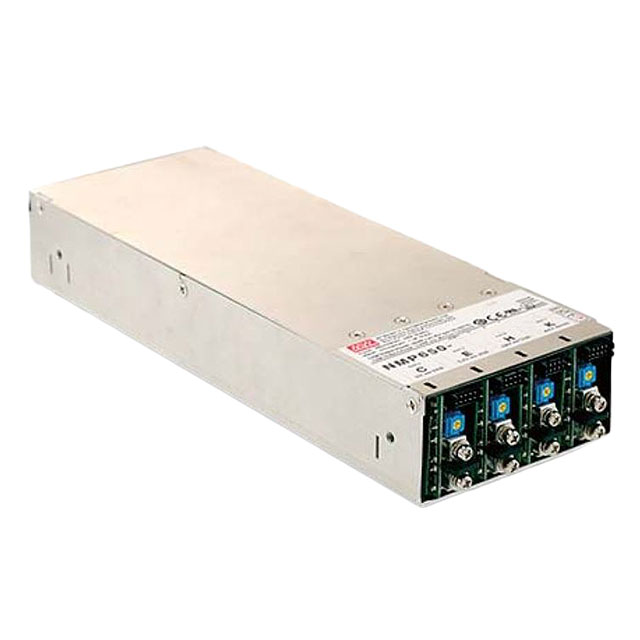

AC/DC CONVERTER 2X24V 480W

Power Supplies - External/Internal (Off-Board)

NMP650-H#H#-00

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 2X24V 480W

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NMP650-H#H#-00

Applications	ITE (Commercial), Medical
Approval Agency	EAC, TUV, CE, cURus, CB
Current - Output 1	10 A
Current - Output 2	10 A
Efficiency	88.5 %
Features	Load Sharing, Universal Input, Remote On/Off, Adjustable Output, PFC, Remote Sense, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	480 W
Size / Dimension Height	1.61 in
Size / Dimension Length	9.84 in
Size / Dimension Width	3.5 in
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	24 V
Voltage - Output 2	24 V

NMP650 Series

...

Part	Voltage - Output 1	Mounting Type	Applications	Number of Outputs	Current - Output 2	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Maximum	Voltage - Output 3	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Standard Number	Features	Voltage - Isolation	Approval Agency	Efficiency	Current - Output 1	Current - Output 3	Voltage - Output 2	Power (Watts)	Type	Voltage - Output 4	Current - Output 4
MEAN WELL USA Inc. NMP650-HC#C-00	24 V	Chassis Mount	ITE (Commercial) Medical	3	36 A	120 V	264 V	90 V	370 V	5 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	10 A	36 A	5 V	600 W	Enclosed
MEAN WELL USA Inc. NMP650-EH#E-00	12 V	Chassis Mount	ITE (Commercial) Medical	3	10 A	120 V	264 V	90 V	370 V	12 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	20 A	20 A	24 V	650 W	Enclosed
MEAN WELL USA Inc. NMP650-EE#E-00	12 V	Chassis Mount	ITE (Commercial) Medical	3	20 A	120 V	264 V	90 V	370 V	12 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	20 A	20 A	12 V	650 W	Enclosed
MEAN WELL USA Inc. NMP650-HHKH-01	24 V	Chassis Mount	ITE (Commercial) Medical	3	5 A	120 V	264 V	90 V	370 V	24 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	20 A	10 A	48 V	650 W	Enclosed
MEAN WELL USA Inc. NMP650-KKHH-00	48 V	Chassis Mount	ITE (Commercial) Medical	4	5 A	120 V	264 V	90 V	370 V	24 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	5 A	10 A	48 V	650 W	Enclosed	24 V	10 A
MEAN WELL USA Inc. NMP650-HHEC-01	24 V	Chassis Mount	ITE (Commercial) Medical	3	20 A	120 V	264 V	90 V	370 V	5 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	20 A	36 A	12 V	650 W	Enclosed
MEAN WELL USA Inc. NMP650-ECE#-00	12 V	Chassis Mount	ITE (Commercial) Medical	3	36 A	120 V	264 V	90 V	370 V	12 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	20 A	20 A	5 V	650 W	Enclosed
MEAN WELL USA Inc. NMP650-H#H#-00	24 V	Chassis Mount	ITE (Commercial) Medical	2	10 A	120 V	264 V	90 V	370 V		70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	10 A		24 V	480 W	Enclosed
MEAN WELL USA Inc. NMP650-H#CK-00	24 V	Chassis Mount	ITE (Commercial) Medical	3	36 A	120 V	264 V	90 V	370 V	48 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	10 A	5 A	5 V	650 W	Enclosed
MEAN WELL USA Inc. NMP650-KCCH-02	48 V	Chassis Mount	ITE (Commercial) Medical	3	72 A	120 V	264 V	90 V	370 V	24 V	70 °C	-30 °C	1.61 in	9.84 in	3.5 in	60601-1 62368-1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 Vpk	CB CE cURus EAC TUV	88.5 %	5 A	10 A	5 V	650 W	Enclosed
