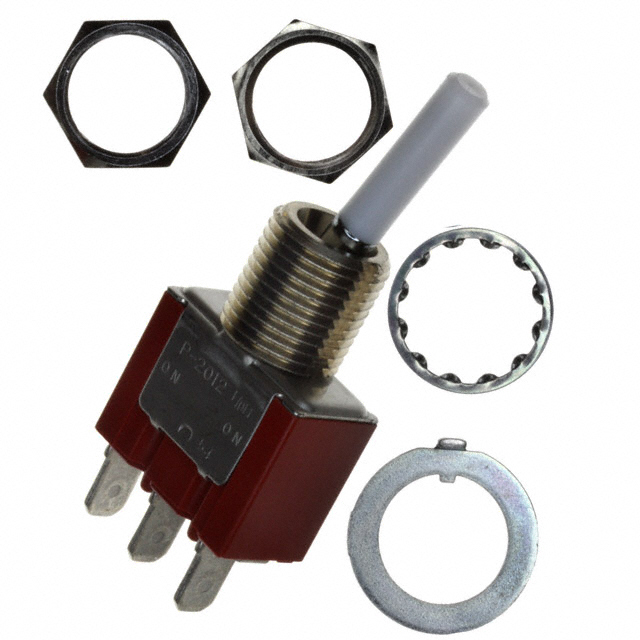

P2012DZ

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 10A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	P2012DZ

Actuator Length [x]	19 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round with Cap
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	White Cap
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Features	Switch Function	Bushing Thread	Bushing Thread	Illumination	Actuator Length [x]	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Panel Cutout Dimensions [diameter]	Electrical Life	Termination Style	Actuator Material	Circuit
NKK Switches P2012DZ	10 A	White Cap	On-On	M12	1 x 1	Non-Illuminated	19 mm	125 V	-10 °C	85 °C	Standard Round with Cap	12.5 mm	25000 Steps	Quick Connect - 0.187" (4.7mm)	Brass Chrome Plated	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Panel Mount
