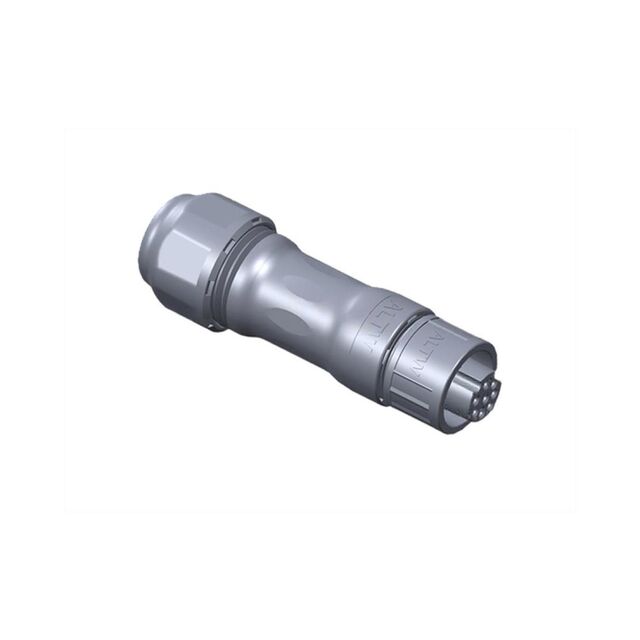

AU-08BFFA-QL8AP0

Active

Amphenol LTW

X-LOK, MINI SIZE, PLASTIC, 2A, 08 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, PUSH LOCK, CRIMP, FIELD INSTALLABLE, 5.0 - 1

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, MINI SIZE, PLASTIC, 2A, 08 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, PUSH LOCK, CRIMP, FIELD INSTALLABLE, 5.0 - 1

Technical Specifications

Parameters and characteristics for this part

Part	Shell Size - Insert	Contact Material	Shielding	Orientation	Number of Positions	Primary Material	Contact Finish - Mating	Features	Color	Voltage Rating	Termination	Backshell Material, Plating	Insert Material	Current Rating (Amps)	Ingress Protection	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type
Amphenol LTW AU-08BFFA-QL8SP0	A	Copper Alloy	Unshielded	Keyed	8	Plastic	Gold	Backshell	Black	300 VDC	Crimp	Thermoplastic	Thermoplastic	2 A	IP68 - Dust Tight Waterproof	0.236 in	6 mm	5 mm	0.197 in	-40 °C	105 ░C	Female Sockets Plug	Free Hanging (In-Line)
Amphenol LTW AU-08BFFA-QL8AP0	A	Copper Alloy	Unshielded	Keyed	8	Plastic	Gold	Backshell	Black	300 VDC	Crimp	Thermoplastic	Thermoplastic	2 A	IP68 - Dust Tight Waterproof					-40 °C	105 ░C	Female Sockets Plug	Free Hanging (In-Line)
Amphenol LTW AU-08BFFA-QL8MP0	A	Copper Alloy	Unshielded	Keyed	8	Plastic	Gold	Backshell	Black	300 VDC	Crimp	Thermoplastic	Thermoplastic	2 A	IP68 - Dust Tight Waterproof	0.315 in	8 mm	6 mm	0.236 in	-40 °C	105 ░C	Female Sockets Plug	Free Hanging (In-Line)
Amphenol LTW AU-08BFFA-QL8LP0	A	Copper Alloy	Unshielded	Keyed	8	Plastic	Gold	Backshell	Black	300 VDC	Crimp	Thermoplastic	Thermoplastic	2 A	IP68 - Dust Tight Waterproof	0.394 in	10 mm	8 mm	0.315 in	-40 °C	105 ░C	Female Sockets Plug	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Crimp
