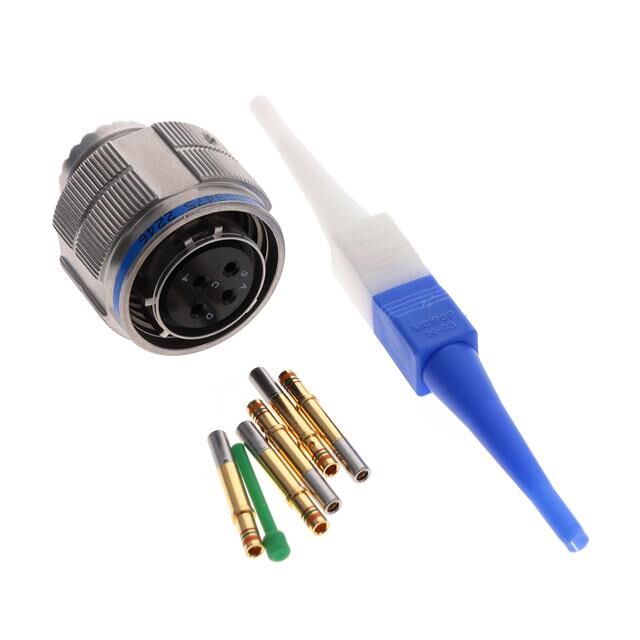

MS27468E13F4S

Active

Corsair

PLUG ANGLED

Search across all available documentation for this part.

Active

Corsair

PLUG ANGLED

Technical Specifications

Parameters and characteristics for this part

Specification	MS27468E13F4S

Applications	Military, Aerospace
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Size - Insert	13-4
Shell Size, MIL	B
Shielding	Shielded
Termination	Crimp

PLUG ANGLED

Part	Features	Shielding	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Termination	Mounting Feature	Material Flammability Rating	Contact Finish - Mating	Qualification	Orientation	Connector Type	Fastening Type	Primary Material	Shell Size - Insert	Shell Size, MIL	Ingress Protection	Insert Material	Grade	Color
Corsair MS27468E13F4S	Coupling Nut	Shielded	4	-65 ░C	200 °C	Aerospace, Military	Crimp	Bulkhead - Front Side Nut	UL94 V-0	Gold	MIL-DTL-38999 Series I	N	Female Sockets, Plug	Bayonet Lock	Metal	13-4	B	IP67	Thermoplastic	Military	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Crimp
