Cree LED

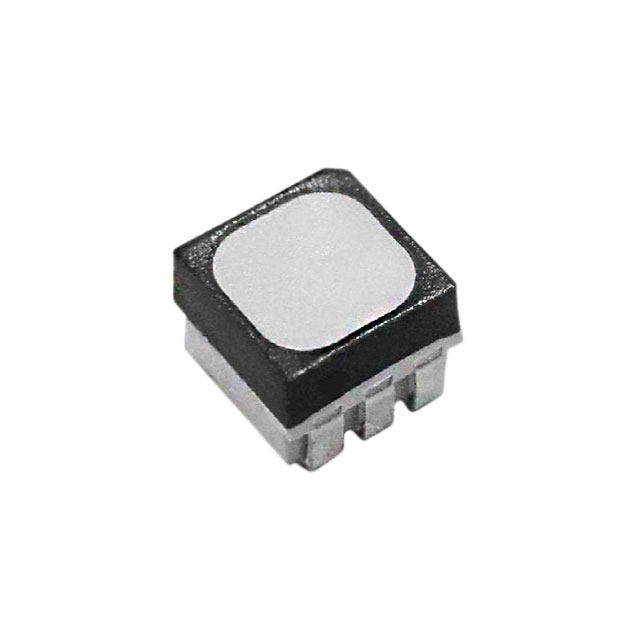

LED, RED, GREEN, BLUE, SMD, SQUARE, R 15MA, G 10MA, B 10MA

Search across all available documentation for this part.

Active

Cree LED

LED, RED, GREEN, BLUE, SMD, SQUARE, R 15MA, G 10MA, B 10MA

Technical Specifications

Parameters and characteristics for this part

Specification	CLX6E-FKC-CH1M1D1BB7C3D3

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	15 mA
Current - Test [custom]	10 mA
Current - Test [custom]	10 mA
Features	IPx8
Height (Max) [Max]	2.9 mm
Lens Color	White
Lens Style	Square with Flat Top
Lens Transparency	Diffused
Millicandela Rating [custom]	248 mcd
Millicandela Rating [custom]	1055 mcd
Millicandela Rating [custom]	533 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	3.4 mm
Size / Dimension [y]	3.4 mm
Supplier Device Package	6-PLCC
Voltage - Forward (Vf) (Typ) [custom]	3 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	2.8 V
Wavelength - Dominant	622 nm, 528 nm, 470 nm

Part	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Features	Color	Lens Color	Mounting Type	Configuration	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Package / Case	Lens Style	Lens Transparency	Supplier Device Package	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
Cree LED CLX6E-FKC-CH1M1D1BB7C3D3	15 mA	10 mA	10 mA	IPx8	Blue Green Red	White	Surface Mount	Independent	3.4 mm	3.4 mm	2.9 mm	3 V	2 V	2.8 V	248 mcd	1055 mcd	533 mcd	470 nm 528 nm 622 nm	6-SMD J-Lead	Square with Flat Top	Diffused	6-PLCC
Cree LED CLX6E-FKC-CHNPMPDGBB79363	15 mA	10 mA	10 mA	IPx8	Blue Green Red		Surface Mount	Independent	3.4 mm	3.4 mm	2.9 mm	3 V	2 V	2.8 V	248 mcd	1055 mcd	580 mcd		6-SMD J-Lead	Square with Flat Top		6-PLCC	473 nm	533 nm	622 nm
Cree LED CLX6E-FKC-CHKMPDGBB79363	15 mA	10 mA	10 mA	IPx8	Blue Green Red	White	Surface Mount	Independent	3.4 mm	3.4 mm	2.9 mm	3 V	2 V	2.8 V	248 mcd	1055 mcd	533 mcd	470 nm 528 nm 622 nm	6-SMD J-Lead	Square with Flat Top	Diffused	6-PLCC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Size is 3.5 x 3.4 x 2.8mm

Spectral bandwidth at 50% IREL max is 24nm (IF=15mA, red, TA=25°C), 38nm (IF=10mA, green, TA = 25°C)

Spectral bandwidth at 50% IREL max is 28nm (IF = 10mA, blue, TA = 25°C)
