5103309-1

Active

TE Connectivity AMP Connectors

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Find alt

Alpha

5103309-1

Active

TE Connectivity AMP Connectors

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

5103309 Series

The 5103309-1 is a 10-position 2-row vertical shrouded wire-to-board Low Profile Pin Header with gold flash over palladium nickel copper alloy pin contacts and black glass filled nylon/PBT 4-sided housing. This AMP-LATCH series plug supports through-hole termination method to PC board and centre, dual polarizing bar mating alignment. It mates with ribbon cable connectors. It is applicable to printed circuit board.

Technical Specifications

Parameters and characteristics for this part

Specification	5103309-1

Connector Type	Header
Contact Finish - Mating	Gold-Palladium, Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Mating	0.24 in
Contact Length - Post	0.12 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	1 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.388 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

5103309 Series

Part	Contact Finish - Mating	Insulation Color	Contact Length - Mating	Current Rating (Per Contact)	Material Flammability Rating	Shrouding	Contact Finish - Post	Number of Positions	Fastening Type	Row Spacing - Mating	Features	Number of Positions Loaded	Contact Length - Post	Contact Material	Pitch - Mating	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Contact Finish Thickness - Mating	Termination	Mounting Type	Contact Type	Number of Rows	Style	Connector Type	Contact Finish Thickness - Post

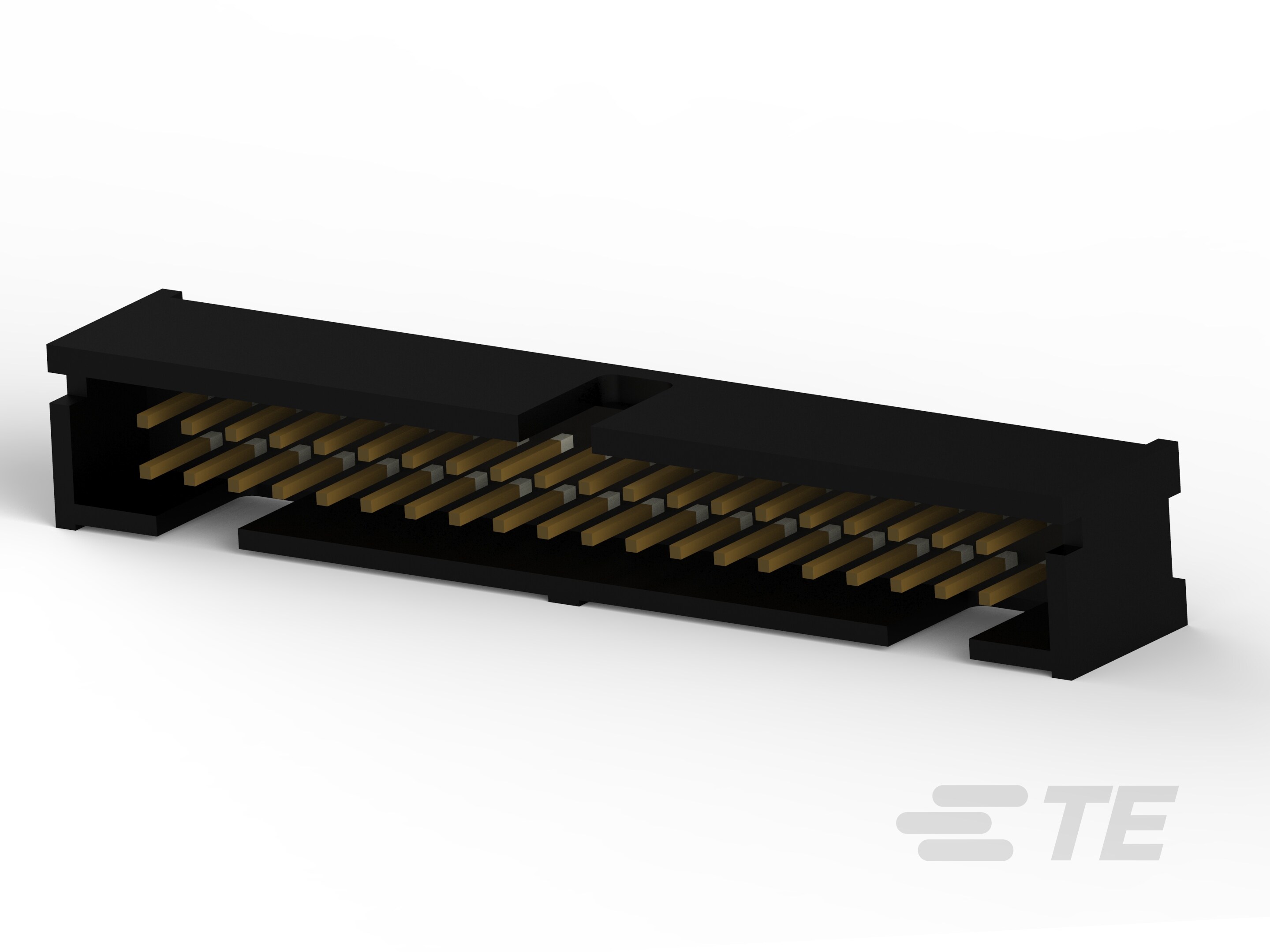

TE Connectivity AMP Connectors 5103309-8	Gold Gold-Palladium	Black	0.24 in	1 A	UL94 V-0	Shrouded - 4 Wall	Tin	40	Push-Pull	0.1 in	Keying Slot	All	0.12 in	Brass	0.1 in	0.388 in	105 °C	-65 °C	Square	30 µin	Solder	Through Hole	Male Pin	2	Board Cable/Wire	Header	100 Ąin
TE Connectivity AMP Connectors 5103309-1	Gold Gold-Palladium	Black	0.24 in	1 A	UL94 V-0	Shrouded - 4 Wall	Tin	10	Push-Pull	0.1 in	Keying Slot	All	0.12 in	Brass	0.1 in	0.388 in	105 °C	-65 °C	Square	30 µin	Solder	Through Hole	Male Pin	2	Board Cable/Wire	Header	100 Ąin

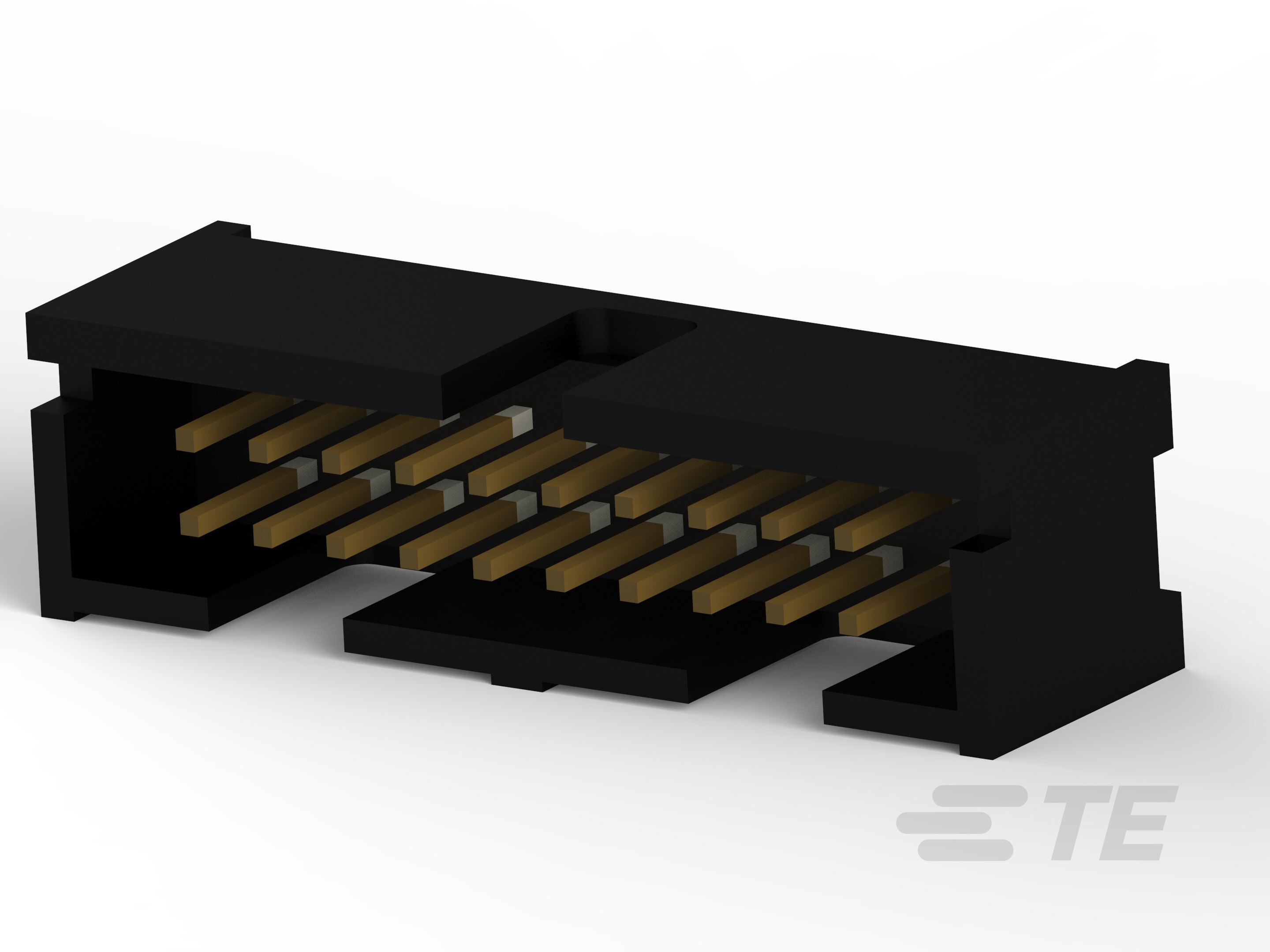

TE Connectivity AMP Connectors 5103309-5	Gold Gold-Palladium	Black	0.24 in	1 A	UL94 V-0	Shrouded - 4 Wall	Tin	20	Push-Pull	0.1 in	Keying Slot	All	0.12 in	Brass	0.1 in	0.388 in	105 °C	-65 °C	Square	30 µin	Solder	Through Hole	Male Pin	2	Board Cable/Wire	Header	100 Ąin

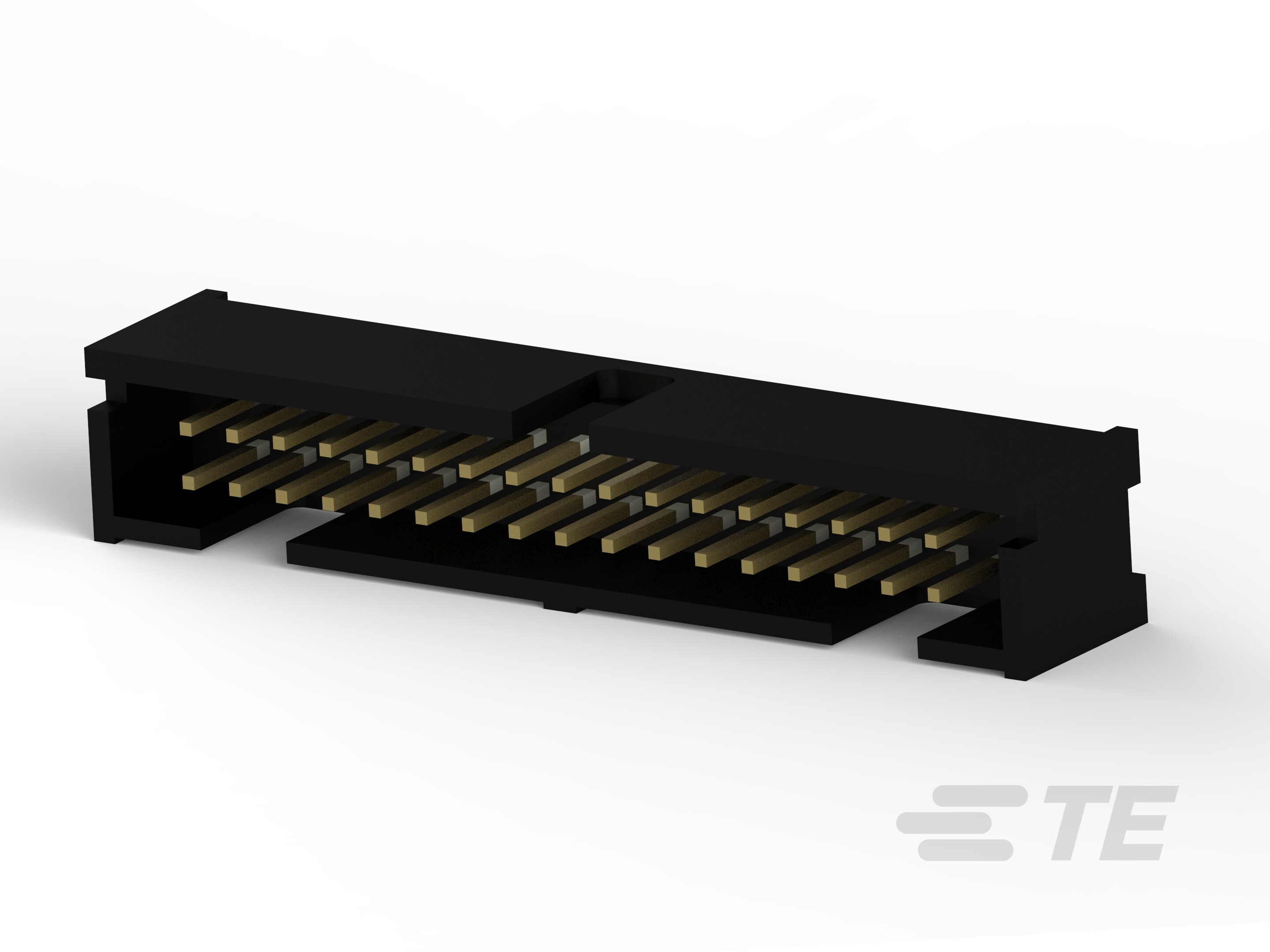

TE Connectivity AMP Connectors 5103309-7	Gold Gold-Palladium	Black	0.24 in	1 A	UL94 V-0	Shrouded - 4 Wall	Tin	34	Push-Pull	0.1 in	Keying Slot	All	0.12 in	Brass	0.1 in	0.388 in	105 °C	-65 °C	Square	30 µin	Solder	Through Hole	Male Pin	2	Board Cable/Wire	Header	100 Ąin
