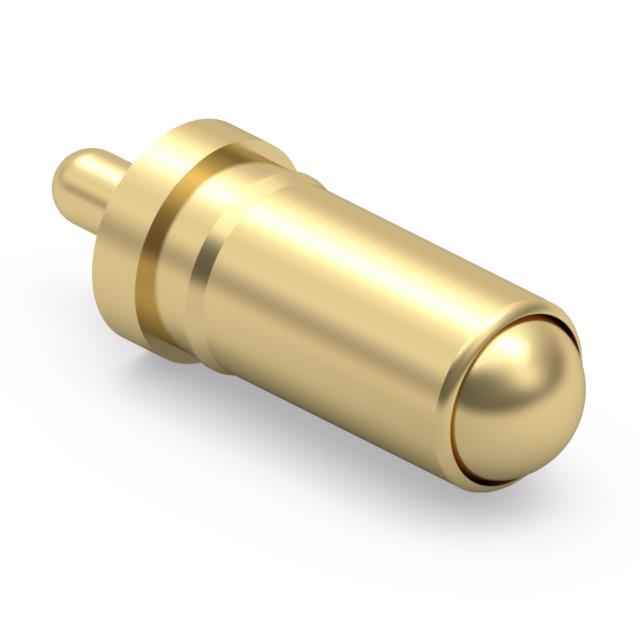

7945-1-15-20-09-14-11-0
ActiveMill-Max Manufacturing Corp.
SPRING LOADED PIN WITH SOLDERTAI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7945-1-15-20-09-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 5.2 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 6.76 mm |
| Maximum Working Height [Max] | 0.266 " |
| Minimum Working Height [Min] | 6 mm |
| Minimum Working Height [Min] | 0.236 in |
| Mounting Type | Through Hole |
| Operating Force - Initial | 30 gf |
| Operating Force - Mid Compression | 55 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 3 mm |
| Pad Layout Dimension [diameter] | 0.118 in |
| Plunger Size [diameter] | 0.091 in |
| Plunger Size [diameter] | 2.31 mm |
| Recommended Working Height [z] | 6.38 mm |
| Recommended Working Height [z] | 0.251 in |
