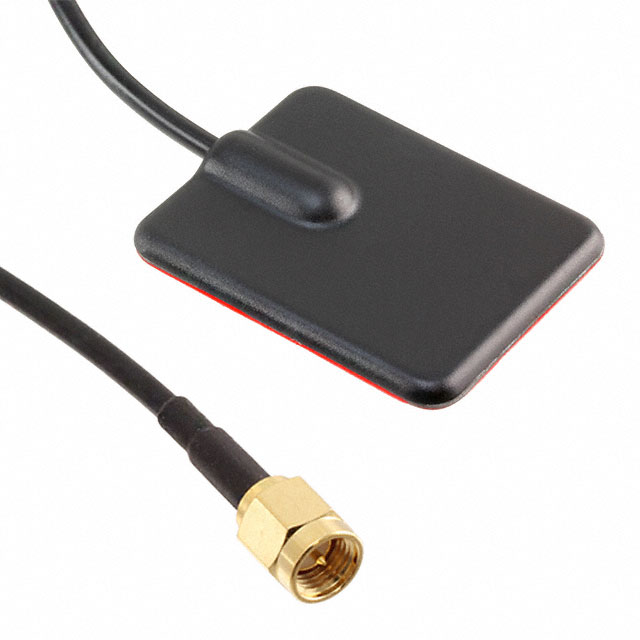

ALPHA14/0.5M/SMAM/S/S/26 - ALPHA14_SMAM

ALPHA14/0.5M/SMAM/S/S/26

Active

Siretta Ltd

RF ANT 850MHZ/868MHZ BLADE SMA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsWhat Parameters are Important for Cellular Antenna Evaluation?Datasheet +1

ALPHA14/0.5M/SMAM/S/S/26 - ALPHA14_SMAM

ALPHA14/0.5M/SMAM/S/S/26

Active

Siretta Ltd

RF ANT 850MHZ/868MHZ BLADE SMA

Deep-Dive with AI

DocumentsWhat Parameters are Important for Cellular Antenna Evaluation?Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.27
		10	$ 13.12
		25	$ 12.58
		100	$ 11.08
		250	$ 10.54
		500	$ 9.86
		1000	$ 9.04

Description

General part information

ALPHA14 Series

RF ANTENNA GPRS, GSM, UMTS Blade SMA Male Adhesive

Documents

Technical documentation and resources

What Parameters are Important for Cellular Antenna Evaluation?

Related Document

Datasheet

Advanced Wireless Catalog

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ALPHA14/0.5M/SMAM/S/S/26	ALPHA14 Series

Antenna Type	Blade	Blade
Applications	UMTS, GSM, GPRS	UMTS, GSM, GPRS
Frequency (Center/Band)	2.1 GHz, 1.9 GHz, 900 MHz, 850 MHz, 1.8 GHz, 915 MHz, 868 MHz	1.8 - 915 GHz
Gain	2.7 dBi	2.7 dBi
Height (Max) [Max]	2 mm	2 mm
Height (Max) [Max]	0.079 in	0.079 in
Mounting Type	Adhesive	Adhesive
Number of Bands	7	7
RF Family/Standard	Cellular	Cellular
VSWR	2	2

ALPHA14 Series

LOW PROFILE GSM 3G AND ISM ANTENNA

Part	Applications	VSWR	RF Family/Standard	Frequency (Center/Band)	Antenna Type	Gain	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Number of Bands
Siretta Ltd ALPHA14/2.5M/SMAM/S/S/26	GPRS, GSM, UMTS	2	Cellular	1.8 GHz, 1.9 GHz, 2.1 GHz, 850 MHz, 868 MHz, 900 MHz, 915 MHz	Blade	2.7 dBi	2 mm	0.079 in	Adhesive	7
Siretta Ltd ALPHA14/0.5M/SMAM/S/S/26	GPRS, GSM, UMTS	2	Cellular	1.8 GHz, 1.9 GHz, 2.1 GHz, 850 MHz, 868 MHz, 900 MHz, 915 MHz	Blade	2.7 dBi	2 mm	0.079 in	Adhesive	7
