ActiveTE Connectivity AMP Connectors
H32A-TS/G-2M32
Deep-Dive with AI
Search across all available documentation for this part.
T1209320232-000
ActiveTE Connectivity AMP Connectors
H32A-TS/G-2M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1209320232-000 | T120 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H32A | H32B, H32A, H24B |
| Size / Dimension [x] | 82 mm | 82 - 120 mm |
| Size / Dimension [x] | 3.228 in | 3.228 - 4.724 " |
| Size / Dimension [y] | 56 mm | 43 - 82.5 mm |
| Size / Dimension [y] | 2.205 in | 1.693 - 3.248 in |
| Size / Dimension [z] | 76 mm | 60 - 76 mm |
| Size / Dimension [z] | 2.992 in | 2.362 - 2.992 in |
| Style | Side and Top Entry | Side and Top Entry |
| Thread Size | M32 | M32, M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.90 | |
| 16 | $ 6.01 | |||
| 32 | $ 5.85 | |||
| 56 | $ 5.69 | |||
| 104 | $ 5.57 | |||
T120 Series
H32B-TG/S-2M40
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Housing Color | Lock Location | Style | Housing Finish | Ingress Protection | Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1200320240-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Hood | Gray | Locking Clip (2) on Base Bottom | Side and Top Entry | Powder Coated | IP65 - Dust Tight, Water Resistant | H32B | 82.5 mm | 3.701 " | 76 mm | 3.248 in | 2.992 in | 94 mm | |
TE Connectivity AMP Connectors T1209320232-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Hood | Gray | Locking Clip (2) on Base Bottom | Side and Top Entry | Powder Coated | IP65 - Dust Tight, Water Resistant | H32A | 56 mm | 3.228 in | 76 mm | 2.205 in | 2.992 in | 82 mm | M32 |
TE Connectivity AMP Connectors T1200243220-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Hood | Gray | Locking Clip (2) on Base Bottom | Side and Top Entry | Powder Coated | IP65 - Dust Tight, Water Resistant | H24B | 43 mm | 4.724 " | 60 mm | 1.693 in | 2.362 " | 120 mm | M20, M32 |
Description
General part information
T120 Series

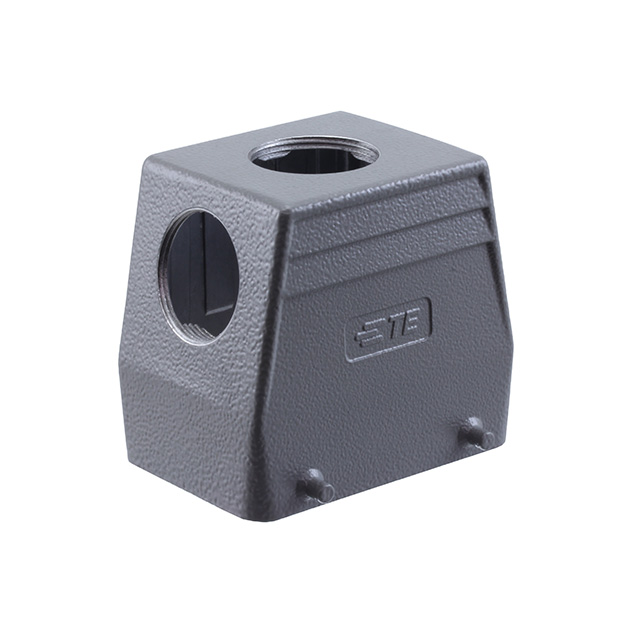

Hood Connector Side and Top Entry M32 H32A IP65 - Dust Tight, Water Resistant
