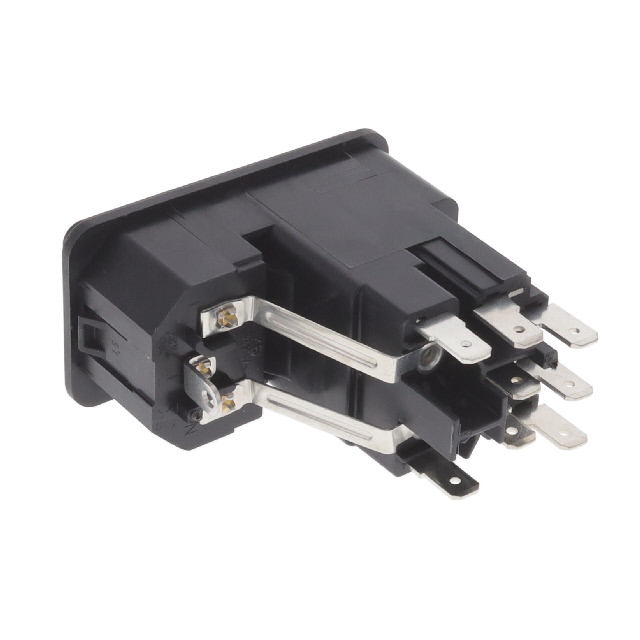

KE10.6100.505
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KE10.6100.505
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KE10.6100.505 | KE10.6100 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, ENEC, CSA | UL, ENEC, CSA, cURus, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Voltage Selector | Voltage Selector |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate | Drawer Sold Separate |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | - | Panel Mount, Snap-In, Flange |
| Panel Cutout Dimensions [x] | 27.5 mm | 27.5 mm |
| Panel Cutout Dimensions [y] | 52.5 mm | 52.5 mm |
| Panel Thickness | - | 2.5 mm |
| Panel Thickness | - | 0.098 in |
| Termination | - | 0.189 - 4.8 " |
| Termination | - | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KE10.6100 Series
PWR ENT MOD RCPT IEC320-C14
| Part | Voltage Rating - Appliance Inlet | Accomodates a Fuse | Material Flammability Rating | Filter Type | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating - Appliance Inlet | Features | Fuse Holder, Drawer | Connector Style | Ingress Protection | Connector Type | Panel Thickness [x] | Panel Thickness [x] | Mounting Type | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KE10.6100.505 | 250 VAC | UL94 V-0 | Unfiltered - Commercial | CSA, ENEC, UL | 27.5 mm | 52.5 mm | 10 A | Voltage Selector | Drawer Sold Separate | IEC 320-C14 | IP40 | Receptacle, Male Blades - Module | ||||||
SCHURTER Inc. KE10.6100.109 | 250 VAC | UL94 V-0 | Unfiltered - Commercial | CSA, ENEC, UL | 27.5 mm | 52.5 mm | 10 A | Voltage Selector | Drawer Sold Separate | IEC 320-C14 | IP40 | Receptacle, Male Blades - Module | 2.5 mm | 0.098 in | Panel Mount, Snap-In | 0.189 ", 4.8 mm | Quick Connect | |
SCHURTER Inc. KE10.6100.151 | 250 VAC | UL94 V-0 | Unfiltered - Commercial | cURus, ENEC | 27.5 mm | 52.5 mm | 10 A | Voltage Selector | Drawer Sold Separate | IEC 320-C14 | IP40 | Receptacle, Male Blades - Module | Flange, Panel Mount | 0.189 ", 4.8 mm | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.15 | |
| 50 | $ 17.48 | |||
| 100 | $ 13.82 | |||
| 500 | $ 11.21 | |||
Description
General part information
KE10.6100 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14
