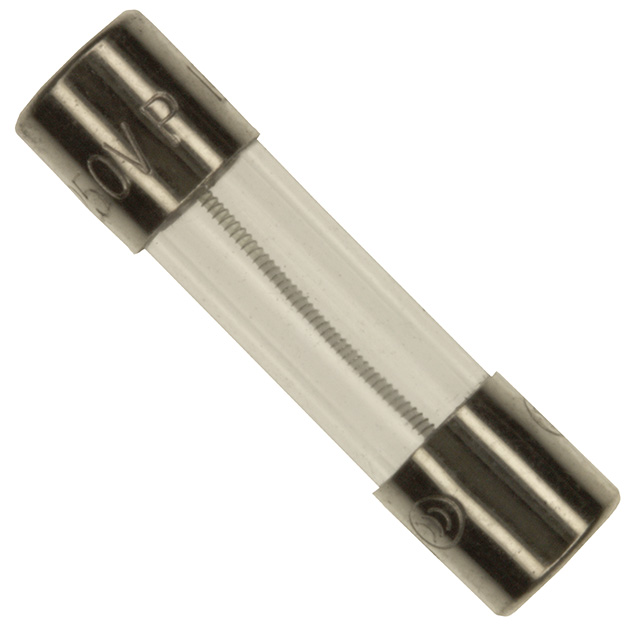

0213.200TXP

Active

LITTELFUSE

FUSE 250V IEC TD LBC 5X20 ROHS 200MA/ BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BSI_KM41462 +7

0213.200TXP

Active

LITTELFUSE

FUSE 250V IEC TD LBC 5X20 ROHS 200MA/ BULK

Deep-Dive with AI

DocumentsDatasheet BSI_KM41462 +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0213.200TXP

Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	0.2 A
DC Cold Resistance	1.6 Ohms
Melting I˛t	0.225
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Slow Blow
Size / Dimension [diameter]	5.2 mm
Size / Dimension [diameter]	0.205 in
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Voltage Rating - AC	250 V

0213.200 Series

FUSE 5x20 C/CODE T LBC 200mA/250V (P)

Part	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Current Rating (Amps)	Package / Case [y]	Package / Case [x]	Mounting Type	Melting I˛t	Voltage Rating - AC	DC Cold Resistance
LITTELFUSE 0213.200TXP	Slow Blow	-55 °C	125 °C	35 A	0.787 in	5.2 mm	20 mm	0.205 in	0.2 A	20 mm	5 mm	Requires Holder	0.225	250 V	1.6 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.04
Newark	Each	1	$ 1.68
		10	$ 1.37
		25	$ 1.27
		50	$ 1.17
		100	$ 1.03
		500	$ 0.93
		1000	$ 0.81
		2500	$ 0.72

Description

General part information

0213.200 Series

The 213 Series is a 5x20mm time-lag, surge-withstand, glass body cartridge fuse that is designed to IEC specifications.
