MAX13058EETI+

Active

Analog Devices Inc./Maxim Integrated

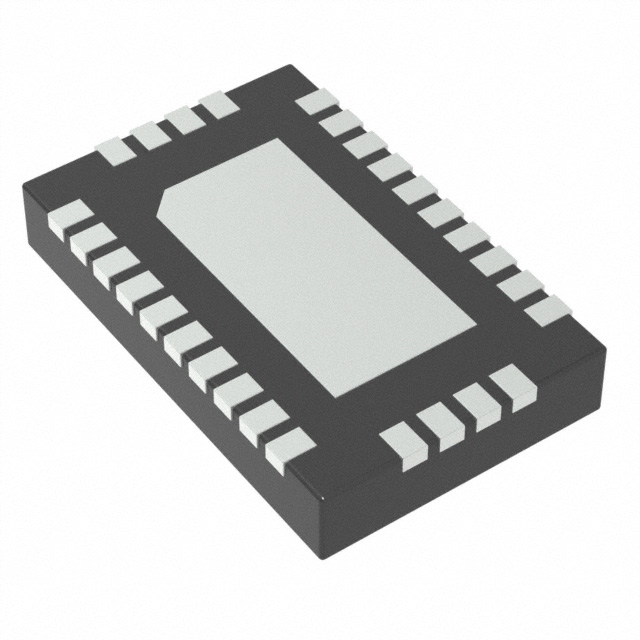

IC TRANSLTR BIDIRECTIONAL 28TQFN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC TRANSLTR BIDIRECTIONAL 28TQFN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltage Level Translator Bidirectional 1 Circuit 8 Channel 100Mbps 28-TQFN (3.5x5.5)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MAX13058EETI+	MAX13058 Series

Channel Type	Bidirectional	Bidirectional
Channels per Circuit	8	8
Data Rate	100 Mbps	100 Mbps
Features	Power Supply Decoupling	Power Supply Decoupling
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Open Drain, Push-Pull	Open Drain, Push-Pull
Package / Case	28-WFQFN Exposed Pad	28-WFQFN Exposed Pad, WLBGA, 24-WFBGA
Supplier Device Package	28-TQFN	28-TQFN, 24-WLP
Supplier Device Package [x]	3.5	3.5
Supplier Device Package [y]	5.5	5.5
Translator Type	Voltage Level	Voltage Level
Voltage - VCCA [Max] [custom]	3.2 V	3.2 V
Voltage - VCCA [Min] [custom]	1.62 V	1.62 V
Voltage - VCCB [Max]	3.6 V	3.6 V
Voltage - VCCB [Min]	2.2 V	2.2 V

IC TRANSLTR BIDIRECTIONAL 28TQFN

Part	Translator Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Channels per Circuit	Features	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Channel Type	Output Type	Package / Case	Number of Circuits	Mounting Type	Voltage - VCCA [Max] [custom]	Voltage - VCCA [Min] [custom]
Analog Devices Inc./Maxim Integrated MAX13058EETI+	Voltage Level	3.5	5.5	28-TQFN	85 °C	-40 °C	100 Mbps	8	Power Supply Decoupling	2.2 V	3.6 V	Bidirectional	Open Drain, Push-Pull	28-WFQFN Exposed Pad	1	Surface Mount	3.2 V	1.62 V
Analog Devices Inc./Maxim Integrated MAX13058EEWG+	Voltage Level			24-WLP	85 °C	-40 °C	100 Mbps	8	Power Supply Decoupling	2.2 V	3.6 V	Bidirectional	Open Drain, Push-Pull	24-WFBGA, WLBGA	1	Surface Mount	3.2 V	1.62 V
Analog Devices Inc./Maxim Integrated MAX13058EEWG+T	Voltage Level			24-WLP	85 °C	-40 °C	100 Mbps	8	Power Supply Decoupling	2.2 V	3.6 V	Bidirectional	Open Drain, Push-Pull	24-WFBGA, WLBGA	1	Surface Mount	3.2 V	1.62 V
