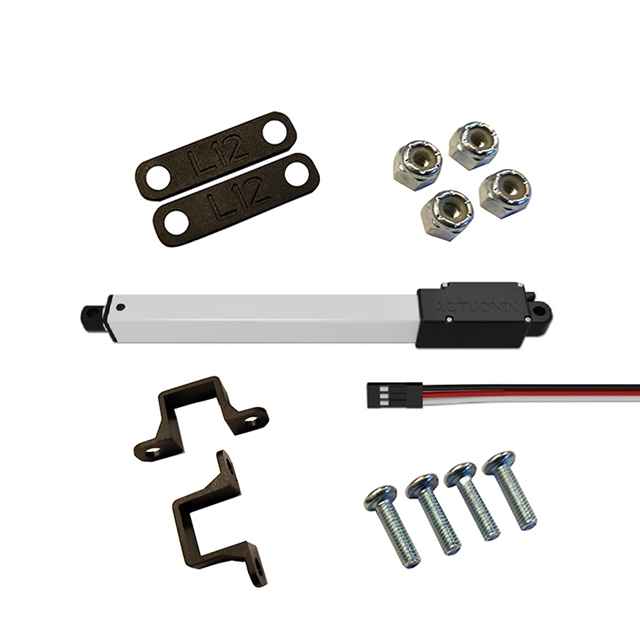

L12-100-50-6-R

Active

Actuonix Motion Devices Inc

L12 -R MICRO LINEAR SERVO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L12-100-50-6-R

Active

Actuonix Motion Devices Inc

L12 -R MICRO LINEAR SERVO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L12-100-50-6-R	L12-100 Series

Construction	Ball Screw	Ball Screw
Duty Cycle	20 %	20 %
Features	RC Linear Servo	Limit Switches, Integrated Controller, RC Linear Servo
Feedback Type	-	Potentiometer
Gear Reduction Ratio	50	50 - 210
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	-	42 - 80 N
Load Force (Dynamic)	-	9.44 - 17.99 lbf
Load Force (Static)	200 N	200 N
Load Force (Static)	44.96 lbf	44.96 lbf
Motor Type	Brushed	Brushed
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Speed	25 mm/s	6.6 - 25 mm/s
Speed	0.98 in/s	0.26 - 0.98 in/s
Stroke Length	3.937 in	3.937 in
Stroke Length	100 mm	100 mm
Type	Linear Actuator	Linear Actuator
Voltage - Rated	6 VDC	6 - 12 VDC

L12-100 Series

L12-S MICRO LINEAR ACTUATOR

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Ingress Protection	Motor Type	Load Force (Static)	Load Force (Static)	Type	Load Force (Dynamic)	Load Force (Dynamic)	Voltage - Rated	Features	Construction	Duty Cycle	Gear Reduction Ratio	Stroke Length	Stroke Length	Feedback Type	Speed	Speed
Actuonix Motion Devices Inc L12-100-100-6-S	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator	42 N	9.44 lbf	6 VDC	Limit Switches	Ball Screw	20 %	100	3.937 in	100 mm
Actuonix Motion Devices Inc L12-100-100-6-I	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator	42 N	9.44 lbf	6 VDC	Integrated Controller	Ball Screw	20 %	100	3.937 in	100 mm	Potentiometer
Actuonix Motion Devices Inc L12-100-50-6-S	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator			6 VDC	Limit Switches	Ball Screw	20 %	50	3.937 in	100 mm		25 mm/s	0.98 in/s
Actuonix Motion Devices Inc L12-100-50-12-S	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator			12 VDC	Limit Switches	Ball Screw	20 %	50	3.937 in	100 mm		25 mm/s	0.98 in/s
Actuonix Motion Devices Inc L12-100-100-12-P	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator	42 N	9.44 lbf	12 VDC		Ball Screw	20 %	100	3.937 in	100 mm	Potentiometer
Actuonix Motion Devices Inc L12-100-100-6-R	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator	42 N	9.44 lbf	6 VDC	RC Linear Servo	Ball Screw	20 %	100	3.937 in	100 mm
Actuonix Motion Devices Inc L12-100-50-12-P	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator			12 VDC		Ball Screw	20 %	50	3.937 in	100 mm	Potentiometer	25 mm/s	0.98 in/s
Actuonix Motion Devices Inc L12-100-210-12-I	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator	80 N	17.99 lbf	12 VDC	Integrated Controller	Ball Screw	20 %	210	3.937 in	100 mm	Potentiometer	6.6 mm/s	0.26 in/s
Actuonix Motion Devices Inc L12-100-210-6-S	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator	80 N	17.99 lbf	6 VDC	Limit Switches	Ball Screw	20 %	210	3.937 in	100 mm		6.6 mm/s	0.26 in/s
Actuonix Motion Devices Inc L12-100-50-6-R	-10 °C	50 °C	IP54 - Dust Protected, Water Resistant	Brushed	200 N	44.96 lbf	Linear Actuator			6 VDC	RC Linear Servo	Ball Screw	20 %	50	3.937 in	100 mm		25 mm/s	0.98 in/s

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.00

Description

General part information

L12-100 Series

L12 -R MICRO LINEAR SERVO

Documents

Technical documentation and resources
