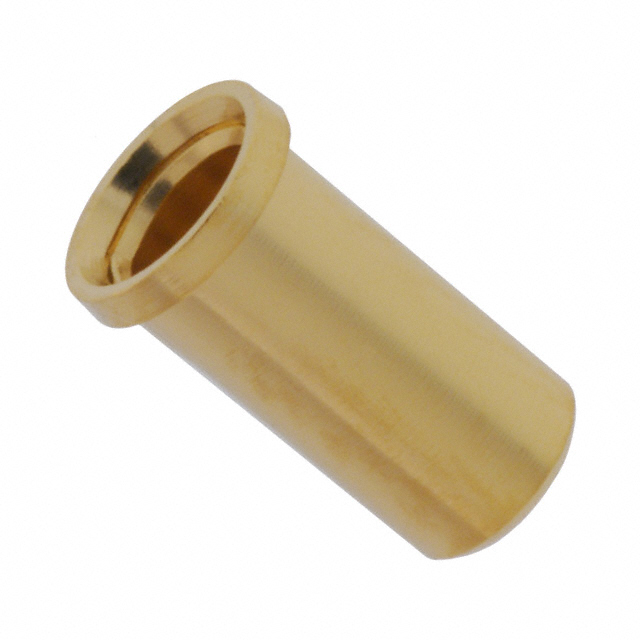

0364-0-15-15-13-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .048-.064 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0364-0-15-15-13-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .048-.064 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0364-0-15-15-13-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 1.63 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.064 " |
| Accepts Pin Diameter [Min] [diameter] | 0.048 " |
| Accepts Pin Diameter [Min] [diameter] | 1.22 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.12 in |
| Flange Diameter [diameter] | 3.05 mm |
| Length - Overall [x] | 0.213 in |
| Length - Overall [x] | 5.41 mm |
| Mounting Hole Diameter [diameter] | 2.54 mm |
| Mounting Hole Diameter [diameter] | 0.1 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.088 in |
| Pin Hole Diameter [diameter] | 2.24 mm |
| Socket Depth | 4.57 mm |
| Socket Depth | 0.18 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.83 | |
| 10 | $ 0.70 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.46 | |||
| 2500 | $ 0.41 | |||
Description
General part information
0364-0 Series
Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Solder
