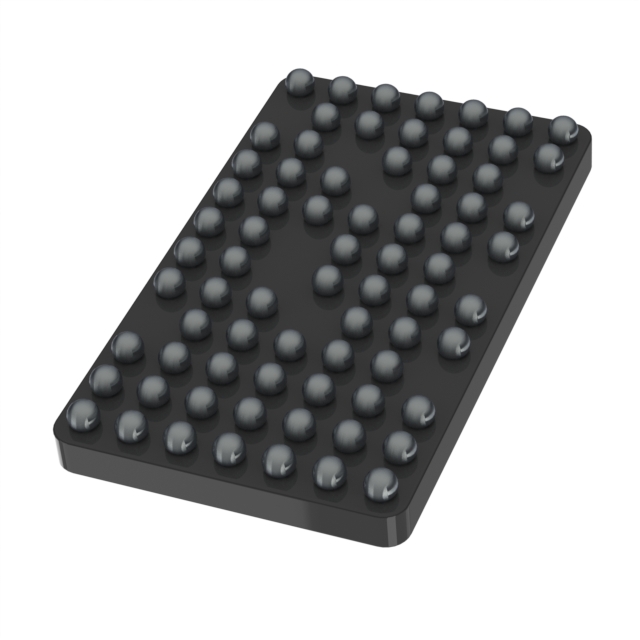

CYW43364KUBGT
NRNDInfineon Technologies
IC RF TXRX+MCU WIFI 74WLBGA
Deep-Dive with AI
Search across all available documentation for this part.
CYW43364KUBGT
NRNDInfineon Technologies
IC RF TXRX+MCU WIFI 74WLBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CYW43364KUBGT |
|---|---|
| Current - Receiving [Max] | 41 mA |
| Current - Receiving [Min] | 37 mA |
| Current - Transmitting [Max] | 320 mA |
| Current - Transmitting [Min] | 260 mA |
| Data Rate (Max) [Max] | 54 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 5 |
| Memory Size | 640 kB, 512 kB |
| Modulation | QPSK, 64QAM, DSSS, CCK, BPSK, 16QAM, OFDM |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | WLBGA, 74-UFBGA |
| Power - Output | 21 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -99 dBm |
| Serial Interfaces | UART, I2S, SPI |
| Supplier Device Package | 74-WLBGA (4.87x2.87) |
| Type | TxRx + MCU |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.87 | |
| 10 | $ 6.14 | |||
| 25 | $ 5.52 | |||
| 100 | $ 5.03 | |||
| 250 | $ 4.54 | |||
| 500 | $ 4.07 | |||
| 1000 | $ 3.44 | |||
| Digi-Reel® | 1 | $ 7.08 | ||
| 10 | $ 5.44 | |||
| 25 | $ 4.95 | |||
| 100 | $ 4.35 | |||
| 250 | $ 4.04 | |||
| 500 | $ 3.83 | |||
| 1000 | $ 3.66 | |||
| Tape & Reel (TR) | 5000 | $ 3.04 | ||
Description
General part information
CYW43364 Series
Infineon’s AIROC™ CYW43364 features 1x1 single-band 2.4 GHz Wi-Fi 4 (802.11n). When coupled with external MCUs from popular vendors or Linux on application processors the CYW43364 implements a complete Wi-Fi system.
Documents
Technical documentation and resources
No documents available
