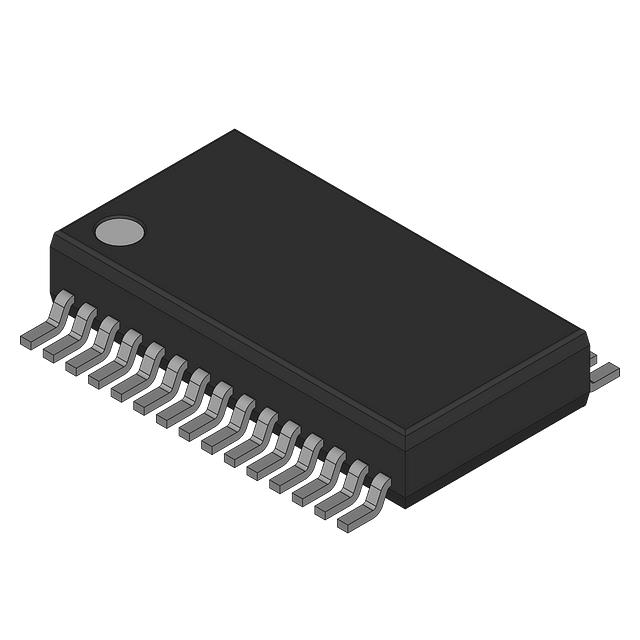

UPD78F0103HMC-5A4-A

Active

Renesas Electronics Corporation

COMPACT, LOW-POWER 8-BIT MICROCONTROLLERS FOR GENERAL PURPOSE APPLICATIONS (NON PROMOTION)

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

COMPACT, LOW-POWER 8-BIT MICROCONTROLLERS FOR GENERAL PURPOSE APPLICATIONS (NON PROMOTION)

Technical Specifications

Parameters and characteristics commom to parts in this series

Compact, Low-power 8-bit Microcontrollers for General Purpose Applications (Non Promotion)

Part	Oscillator Type	Connectivity	Number of I/O	Peripherals	Program Memory Type	Core Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	RAM Size	Package / Case	Package / Case	Package / Case	Program Memory Size	Speed	Mounting Type	Data Converters	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Supplier Device Package
Renesas Electronics Corporation UPD78F0103HMC-5A4-A	Internal	3-Wire SIO, UART/USART	22	WDT	FLASH	8-Bit	2.5 V	5.5 V	768 x 8	30-LSSOP	0.24 in	6.1 mm	24 KB	12 MHz	Surface Mount	A/D 4x10b SAR	85 °C	-40 °C	78K/0	30-SSOP
Renesas Electronics Corporation UPD78F0103M5MC(A)-CAB-AX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	58	$ 5.20

General part information

The 78K0/Kx1+ Group is supported only for customers who have already adopted these products. The RL78/G13 Group is recommended for new designs.

Technical documentation and resources

No documents available
