QV6016NH5TP

Active

IXYS

TRIAC ALTERNISTOR 600V 16A TO263

Search across all available documentation for this part.

Active

IXYS

TRIAC ALTERNISTOR 600V 16A TO263

Technical Specifications

Parameters and characteristics for this part

Specification	QV6016NH5TP

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	50 mA
Current - Hold (Ih) (Max) [Max]	60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	200 A, 167 A
Current - On State (It (RMS)) (Max)	16 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C

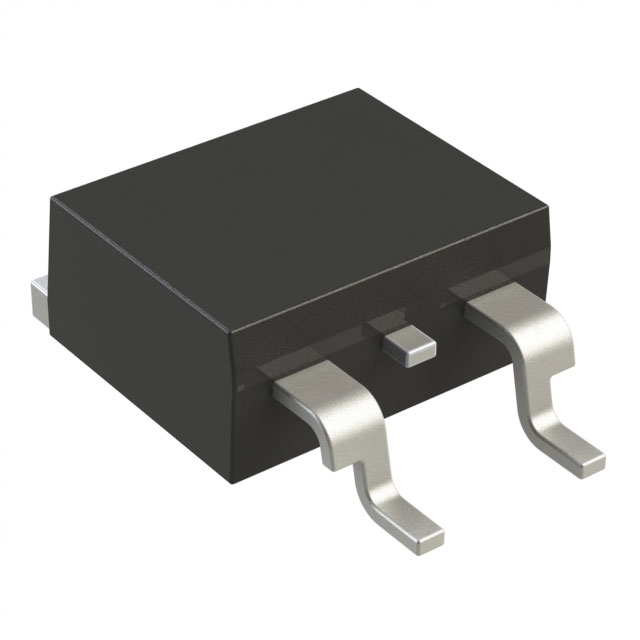

Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Supplier Device Package	TO-263 (D2PAK)
Triac Type	Alternistor - Snubberless
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V
Voltage - Off State	600 V

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Package / Case	Current - Hold (Ih) (Max) [Max]	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Triac Type	Current - On State (It (RMS)) (Max)	Configuration	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State
IXYS QV6016LH5TP	167 A 200 A	TO-220-3 Isolated Tab	60 mA	Through Hole	ITO-220AB	150 °C	-40 °C	Alternistor - Snubberless	16 A	Single	1.3 V	50 mA	600 V
IXYS QV6016NH5RP	167 A 200 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	60 mA	Surface Mount	TO-263 (D2PAK)	150 °C	-40 °C	Alternistor - Snubberless	16 A	Single	1.3 V	50 mA	600 V
IXYS QV6016NH5TP	167 A 200 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	60 mA	Surface Mount	TO-263 (D2PAK)	150 °C	-40 °C	Alternistor - Snubberless	16 A	Single	1.3 V	50 mA	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Alternistor - Snubberless 600 V 16 A Surface Mount TO-263 (D2PAK)
