5697-24

Active

Pomona Electronics

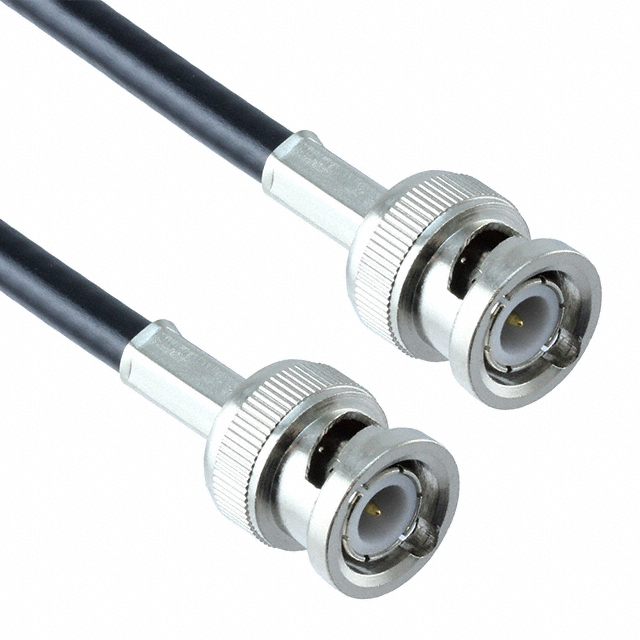

CBL ASSY BNC PLUG TO PLUG 24"

Search across all available documentation for this part.

Active

Pomona Electronics

CBL ASSY BNC PLUG TO PLUG 24"

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector Mounting Type	Color	Length	Length	Length	Overall Impedance	Features	Cable Impedance	Style	2nd Contact Gender	2nd Connector	2nd Connector Mounting Type	1st Connector	Connector Impedance	Cable Type	1st Contact Gender	Operating Temperature
Pomona Electronics 5697-180	Free Hanging (In-Line)	Black	15 ft	5 yd	4.6 m	50 Ohms	Shielded	50 Ohms	BNC to BNC	Male	BNC Plug	Free Hanging (In-Line)	BNC Plug	50 Ohms	RG-58C	Male	80 °C
Pomona Electronics 5697-24	Free Hanging (In-Line)	Black	24 "		609.6 mm	50 Ohms	Shielded	50 Ohms	BNC to BNC	Male	BNC Plug	Free Hanging (In-Line)	BNC Plug	50 Ohms	RG-58C	Male	80 °C
Pomona Electronics 5697-240	Free Hanging (In-Line)	Black	20 ft	20 ft	6.1 m	50 Ohms	Shielded	50 Ohms	BNC to BNC	Male	BNC Plug	Free Hanging (In-Line)	BNC Plug	50 Ohms	RG-58C	Male	80 °C
Pomona Electronics 5697-36	Free Hanging (In-Line)	Black	36 in		91.44 cm	50 Ohms	Shielded	50 Ohms	BNC to BNC	Male	BNC Plug	Free Hanging (In-Line)	BNC Plug	50 Ohms	RG-58C	Male	80 °C
Pomona Electronics 5697-48	Free Hanging (In-Line)	Black	48 in	4 ft	1200 mm	50 Ohms	Shielded	50 Ohms	BNC to BNC	Male	BNC Plug	Free Hanging (In-Line)	BNC Plug	50 Ohms	RG-58C	Male	80 °C
Pomona Electronics 5697-120	Free Hanging (In-Line)	Black	10 ft	10 '	3 m	50 Ohms	Shielded	50 Ohms	BNC to BNC	Male	BNC Plug	Free Hanging (In-Line)	BNC Plug	50 Ohms	RG-58C	Male	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.74

General part information

Cable Assembly Coaxial BNC to BNC RG-58C 24.00" (609.60mm)
