8428122022134

Obsolete

Amphenol ICC (Commercial Products)

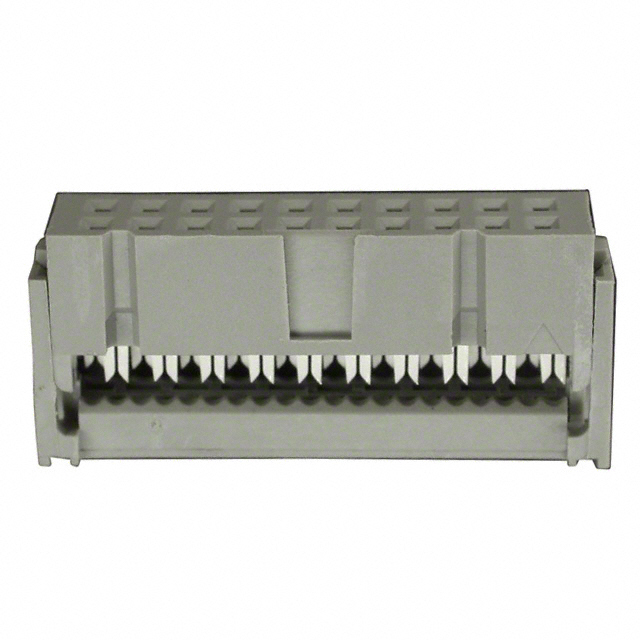

CONN RCPT 20POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

8428122022134

Obsolete

Amphenol ICC (Commercial Products)

CONN RCPT 20POS IDC GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8428122022134

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

84281 Series

Part	Connector Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish - Mating	Number of Positions Loaded	Contact Shape	Number of Positions	Insulation Height	Insulation Height	Contact Type	Mounting Type	Number of Rows	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Shrouding	Insulation Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Wire Type	Pitch [x]	Pitch [x]	Contact Finish	Color
Amphenol ICC (Commercial Products) 8428162030035	Header	Push-Pull	2.54 mm	0.1 in	Phosphor Bronze	6.1 mm	0.24 in	Gold	All	Square	20	17.52 mm	0.69 "	Male Pin	Through Hole	2	Solder	30 Áin	0.76 Ám	Keying Slot	Shrouded - 2 Wall	Gray	UL94 V-0	105 ░C	-55 °C	Board to Cable/Wire	2.76 mm	0.109 in	0.1 in	2.54 mm
Amphenol ICC (Commercial Products) 8428162630035	Header	Push-Pull	2.54 mm	0.1 in	Phosphor Bronze	6.1 mm	0.24 in	Gold	All	Square	26	17.52 mm	0.69 "	Male Pin	Through Hole	2	Solder	30 Áin	0.76 Ám	Keying Slot	Shrouded - 2 Wall	Gray	UL94 V-0	105 ░C	-55 °C	Board to Cable/Wire	2.76 mm	0.109 in	0.1 in	2.54 mm
Amphenol ICC (Commercial Products) 8428122622134	Receptacle										26			Female Socket	Free Hanging (In-Line)	2				Feed Through Strain Relief											IDC	0.76 Ám	30 Áin	0.1 in	2.54 mm	Ribbon Cable	2.54 mm	0.1 in	Gold	Gray
Amphenol ICC (Commercial Products) 8428122022134	Receptacle										20			Female Socket	Free Hanging (In-Line)	2				Feed Through Strain Relief											IDC	0.76 Ám	30 Áin	0.1 in	2.54 mm	Ribbon Cable	2.54 mm	0.1 in	Gold	Gray
Amphenol ICC (Commercial Products) 8428121422134	Receptacle										14			Female Socket	Free Hanging (In-Line)	2				Feed Through Strain Relief											IDC	0.76 Ám	30 Áin	0.1 in	2.54 mm	Ribbon Cable	2.54 mm	0.1 in	Gold	Gray
Amphenol ICC (Commercial Products) 8428126422134	Receptacle										64			Female Socket	Free Hanging (In-Line)	2				Feed Through Polarizing Key											IDC	0.76 Ám	30 Áin	0.1 in	2.54 mm	Ribbon Cable	2.54 mm	0.1 in	Gold	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

84281 Series

20 Position Rectangular Receptacle Connector IDC Gold
