829394-2

Obsolete

TE Connectivity AMP Connectors

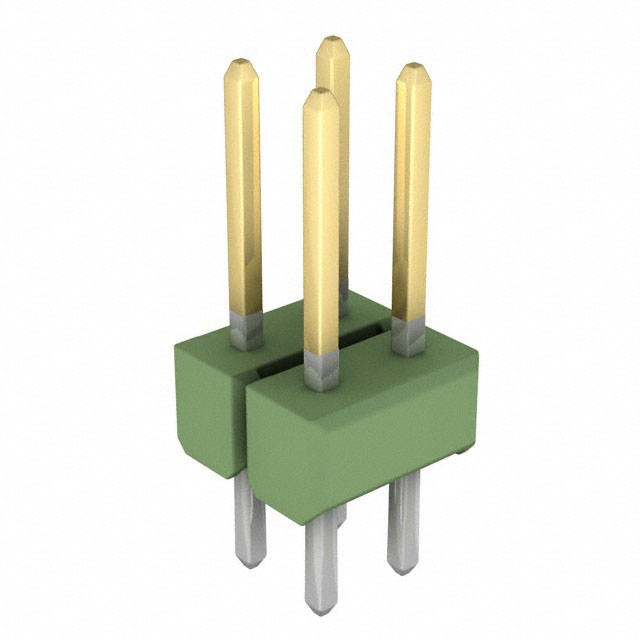

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

829394-2

Obsolete

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

829394 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	829394-2	829394 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	6.8 mm	6.8 mm
Contact Length - Mating	0.268 in	0.268 in
Contact Length - Post	3.35 mm	3.35 mm
Contact Length - Post	0.132 in	0.132 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4 - 14
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	12.7 mm	12.7 mm
Overall Contact Length	0.5 "	0.5 "
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

829394 Series

CONN HEADER VERT 4POS 2.54MM

Part	Connector Type	Number of Positions	Termination	Mounting Type	Number of Positions Loaded	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish - Post	Shrouding	Contact Finish - Mating	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Overall Contact Length	Overall Contact Length	Number of Positions
TE Connectivity AMP Connectors 829394-2	Breakaway, Header	4	Solder	Through Hole	All	2	6.8 mm	0.268 in	3.35 mm	0.132 in	5 A	Phosphor Bronze	0.1 in	2.54 mm	Green	3 µm	118.1 µin	0.1 in	2.54 mm	Tin	Unshrouded	Gold	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT), Glass Filled	Square	0.099 µm	3.9 µin	Push-Pull	12.7 mm	0.5 "
TE Connectivity AMP Connectors 829394-8	Breakaway, Header		Solder	Through Hole	All	2	6.8 mm	0.268 in	3.35 mm	0.132 in	5 A	Phosphor Bronze	0.1 in	2.54 mm	Green	3 µm	118.1 µin	0.1 in	2.54 mm	Tin	Unshrouded	Gold	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT), Glass Filled	Square	0.099 µm	3.9 µin	Push-Pull	12.7 mm	0.5 "	16
TE Connectivity AMP Connectors 829394-7	Breakaway, Header	14	Solder	Through Hole	All	2	6.8 mm	0.268 in	3.35 mm	0.132 in	5 A	Phosphor Bronze	0.1 in	2.54 mm	Green	3 µm	118.1 µin	0.1 in	2.54 mm	Tin	Unshrouded	Gold	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT), Glass Filled	Square	0.099 µm	3.9 µin	Push-Pull	12.7 mm	0.5 "
