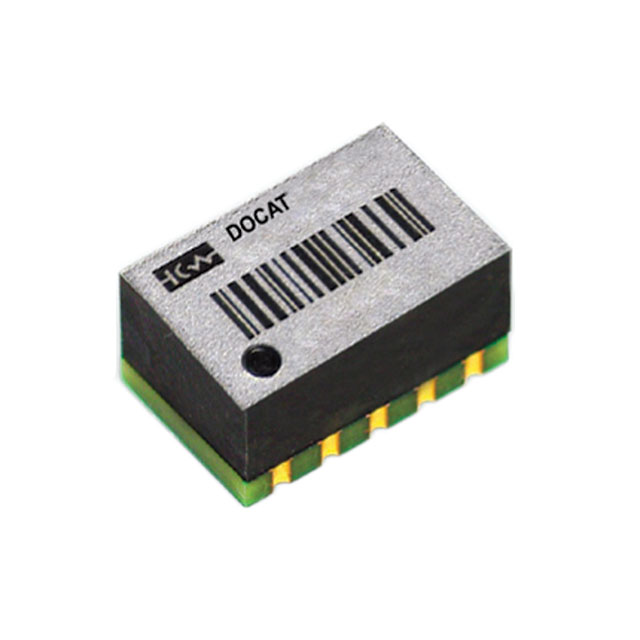

DOXSC022F-010.0M

Active

Connor Winfield

XTAL OSC OCXO 10.0000MHZ LVCMOS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DOXSC022F-010.0M

Active

Connor Winfield

XTAL OSC OCXO 10.0000MHZ LVCMOS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DOXSC022F-010.0M	DOXSC Series

Absolute Pull Range (APR)	15 ppm	15 ppm
Base Resonator	Crystal	Crystal
Frequency	10 MHz	10 - 40 MHz
Frequency Stability	20 ppb	20 - 100 ppb
Height - Seated (Max)	8.51 mm	8.51 mm
Height - Seated (Max) [Max] [z]	0.335 in	0.335 in
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Output	LVCMOS	LVCMOS
Package / Case	6-SMD, No Lead	6-SMD, No Lead
Size / Dimension [x]	0.555 "	0.555 "
Size / Dimension [x]	14.1 mm	14.1 mm
Size / Dimension [y]	9.1 mm	9.1 mm
Size / Dimension [y]	0.358 in	0.358 in
Type	OCXO	OCXO
Voltage - Supply	3.3 V	3.3 V

DOXSC Series

XTAL OSC OCXO 10.0000MHZ LVCMOS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Base Resonator	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Absolute Pull Range (APR)	Frequency Stability	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Supply	Mounting Type	Output	Frequency
Connor Winfield DOXSC022F-010.0M	85 °C	-40 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	20 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	10 MHz
Connor Winfield DOXSC102F-040.0M	85 °C	-40 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	100 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	40 MHz
Connor Winfield DOXSC050F-010.0M	70 °C	0 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	50 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	10 MHz
Connor Winfield DOXSC020F-025.0M	70 °C	0 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	20 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	25 MHz
Connor Winfield DOXSC020F-010.0M	70 °C	0 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	20 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	10 MHz
Connor Winfield DOXSC100F-020.0M	70 °C	0 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	100 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	20 MHz
Connor Winfield DOXSC052F-010.0M	85 °C	-40 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	50 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	10 MHz
Connor Winfield DOXSC102F-020.0M	85 °C	-40 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	100 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	20 MHz
Connor Winfield DOXSC100F-010.0M	70 °C	0 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	100 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	10 MHz
Connor Winfield DOXSC102F-010.0M	85 °C	-40 °C	Crystal	6-SMD, No Lead	0.335 in	8.51 mm	15 ppm	100 ppb	OCXO	9.1 mm	0.358 in	0.555 "	14.1 mm	3.3 V	Surface Mount	LVCMOS	10 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 55.65
		10	$ 52.77
	Digi-Reel®	1	$ 55.65
		10	$ 52.77
	Tape & Reel (TR)	50	$ 51.81
		100	$ 49.89

Description

General part information

DOXSC Series

10 MHz OCXO LVCMOS Oscillator 3.3V 6-SMD, No Lead
