2244-2

Active

Pomona Electronics

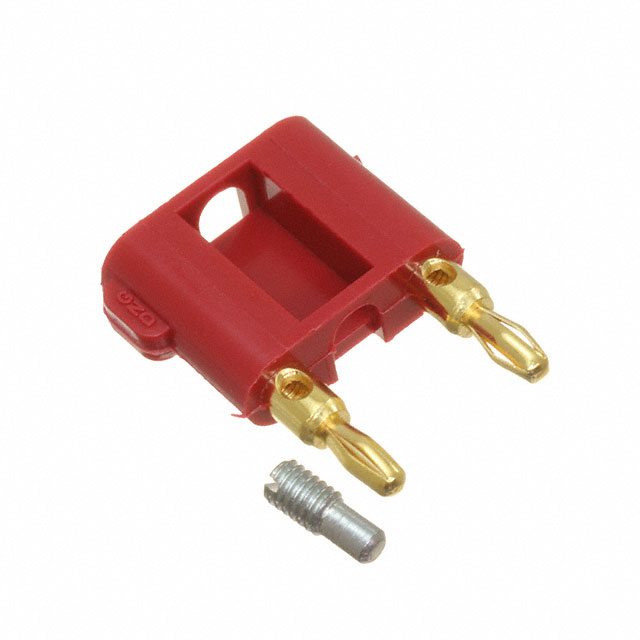

CONN DBL BANANA PLUG STACK MINI

Search across all available documentation for this part.

Active

Pomona Electronics

CONN DBL BANANA PLUG STACK MINI

Technical Specifications

Parameters and characteristics for this part

Specification	2244-2

Body Material	Polypropylene (PP)
Color	Red
Contact Finish	Gold
Contact Material	Beryllium Copper
Features	Set Screw
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Miniature
Termination	Solderless
Type	Banana Plug, Double, Stackable
Wire Gauge [diameter]	0.15 in
Wire Gauge [diameter]	3.81 mm

Part	Body Material	Termination	Contact Finish	Plug/Mating Plug Diameter	Insulation	Gender	Color	Type	Features	Operating Temperature	Wire Gauge [diameter]	Wire Gauge [diameter]	Contact Material	Mounting Type
Pomona Electronics 2244-2#	Polypropylene (PP)	Solderless	Gold	Miniature	Non-Mating End Insulated	Male	Red	Banana Plug Double Stackable	Set Screw	50 °C	0.15 in	3.81 mm	Beryllium Copper	Free Hanging (In-Line)
Pomona Electronics 2244-2	Polypropylene (PP)	Solderless	Gold	Miniature	Non-Mating End Insulated	Male	Red	Banana Plug Double Stackable	Set Screw	50 °C	0.15 in	3.81 mm	Beryllium Copper	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Banana Plug, Double, Stackable Connector Miniature Solderless Red
