159250-5002

Active

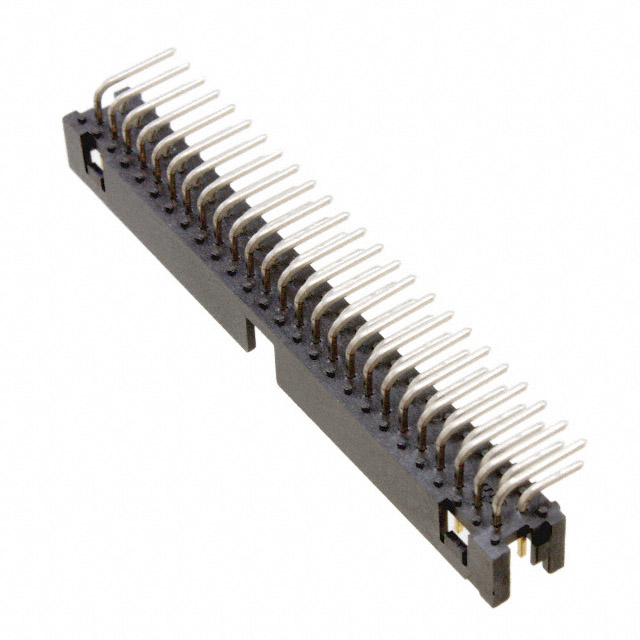

CONN HEADER R/A 50POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

159250-5002

Active

CONN HEADER R/A 50POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

159250 Series

Connector Header Through Hole, Right Angle 50 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	159250-5002	159250 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.61 mm	3.61 mm
Contact Length - Mating	0.142 in	0.142 in
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Detent Lock	Detent Lock
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	0.241 in	0.21 - 0.241 in
Insulation Height	6.13 mm	5.33 - 6.13 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Surface Mount, Through Hole, Right Angle, Through Hole
Number of Positions	50	50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	150 VDC	150 VDC

159250 Series

CONN HEADER SMD 50POS 2MM

Part	Fastening Type	Connector Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions Loaded	Number of Rows	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Number of Positions	Contact Material	Shrouding	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Current Rating (Amps)	Contact Length - Post	Contact Length - Post
3M 159250-2002	Detent Lock	Header	5.33 mm	0.21 in	3.61 mm	0.142 in	Black	Gold	Board to Cable/Wire	15 µin	0.38 µm	Male Pin	150 VDC	0.079 in	2 mm	Solder	All	2	Tin	0.079 in	2 mm	Surface Mount	50	Copper Alloy	Shrouded - 4 Wall	Square	105 ░C	-55 °C	UL94 V-0	200 µin	5.08 µm	Keying Slot	1.25 A
3M 159250-5002	Detent Lock	Header	6.13 mm	0.241 in	3.61 mm	0.142 in	Black	Gold	Board to Cable/Wire	15 µin	0.38 µm	Male Pin	150 VDC	0.079 in	2 mm	Solder	All	2	Tin	0.079 in	2 mm	Through Hole, Right Angle	50	Copper Alloy	Shrouded - 4 Wall	Square	105 ░C	-55 °C	UL94 V-0	200 µin	5.08 µm	Keying Slot	1.25 A	2.84 mm	0.112 in
3M 159250-6002	Detent Lock	Header	5.33 mm	0.21 in	3.61 mm	0.142 in	Black	Gold	Board to Cable/Wire	15 µin	0.38 µm	Male Pin	150 VDC	0.079 in	2 mm	Solder	All	2	Tin	0.079 in	2 mm	Through Hole	50	Copper Alloy	Shrouded - 4 Wall	Square	105 ░C	-55 °C	UL94 V-0	200 µin	5.08 µm	Keying Slot	1.25 A	2.84 mm	0.112 in
