3362W-1-500

Active

Bourns Inc.

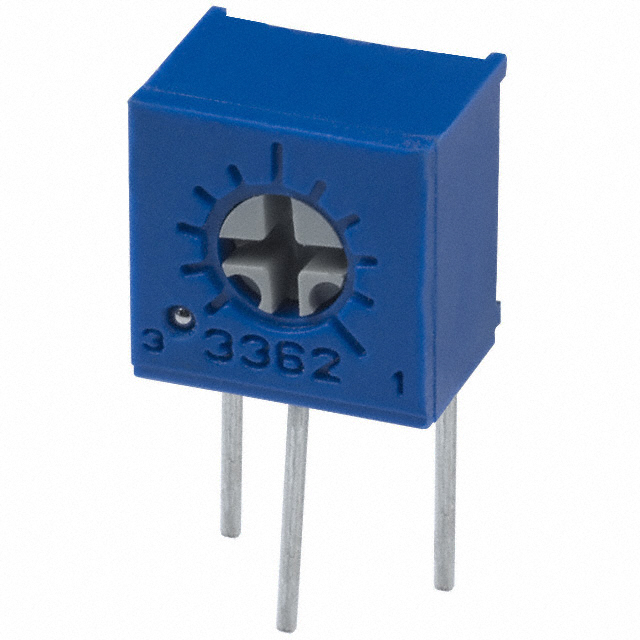

TRIMMER 50 OHM 0.5W PC PIN SIDE

3362W-1-500

Active

Bourns Inc.

TRIMMER 50 OHM 0.5W PC PIN SIDE

Description Specifications Series Pricing CAD Documents

Description

General part information

3362W Series

50 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment

Technical Specifications

Parameters and characteristics for this part

Specification	3362W-1-500

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	1 turns
Power (Watts)	500 mW
Power (Watts) Options	1/2W
Resistance	50 Ohms
Resistive Material	Cermet
Size / Dimension Length	0.275 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.26 in
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3362W Series

Part	Power (Watts)	Power (Watts) Options	Number of Turns	Termination Style	Tolerance	Temperature Coefficient	Adjustment Type	Mounting Type	Resistive Material	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Resistance
Bourns Inc. 3362W-1-500	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	50 Ohms
Bourns Inc. 3362W-1-200	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	20 Ohm
Bourns Inc. 3362W-1-101LF	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	100 Ohms
Bourns Inc. 3362W-1-201LF	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	200 Ohm
Bourns Inc. 3362W-1-203LF	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	20 kOhm
Bourns Inc. 3362W-1-252	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	2.5 kOhm
Bourns Inc. 3362W-1-105LF	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	1 MOhm
Bourns Inc. 3362W-1-100	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	10 Ohms
Bourns Inc. 3362W-1-253LF	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	25 kOhm
Bourns Inc. 3362W-1-203	500 mW	1/2W	1 turns	PC Pins	10 %	100 ppm/°C	Side Adjustment	Through Hole	Cermet	0.275 in	Rectangular	0.26 in	20 kOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3362W-1-500 | Datasheet
