1751332 - COMBICON MKDS

1751332

Active
Phoenix Contact

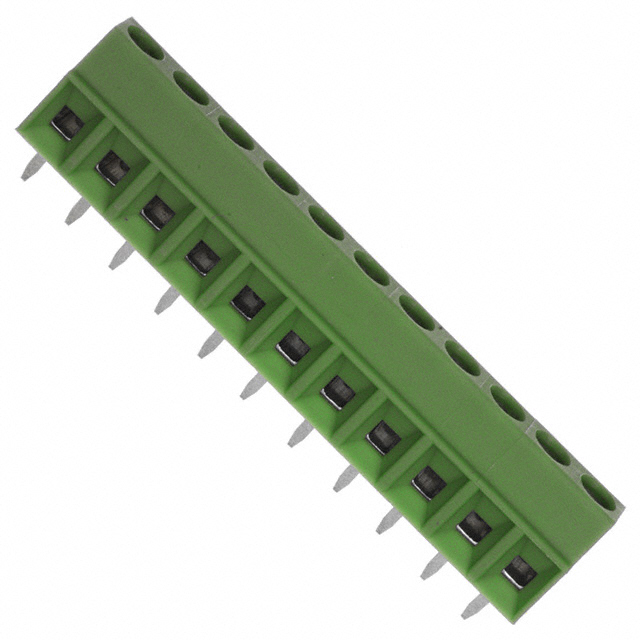

CONN PC TERMINAL BLOCK 11 POS 3.5MM SOLDER ST THRU-HOLE 17.5A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet1751332+1
1751332 - COMBICON MKDS

1751332

Active
Phoenix Contact

CONN PC TERMINAL BLOCK 11 POS 3.5MM SOLDER ST THRU-HOLE 17.5A

Deep-Dive with AI

DocumentsDatasheet1751332+1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification1751332MKDS Series
ColorGreenGreen, Black
Current10 A10 - 60 A
Features-Interlocking (Side)
Housing MaterialPolyamide (PA), NylonPolyamide (PA), Nylon, Polyamide (PA), Nylon, Glass Filled
Mating OrientationHorizontal with BoardHorizontal with Board
Mounting TypeThrough HoleThrough Hole, Surface Mount
Number of Levels11
Pitch [x]3.5 mm3.5 - 10.16 mm
Pitch [x]0.138 in0.138 - 0.4 in
Positions Per Level112 - 11
Screw ThreadM2M2, M3, M4
Torque - Screw [Max]2.2 Lb-In2.2 - 13.3 Lb-In
Torque - Screw [Max]0.25 Nm0.25 - 1.5 Nm
Torque - Screw [Min]0.22 Nm0.22 - 1.2 Nm
Torque - Screw [Min]1.9 Lb-In1.9 - 10.6 Lb-In
Voltage300 V300 - 600 V
Wire Gauge [Max]30 AWG20 - 30 AWG
Wire Gauge [Min]16 AWG6 - 16 AWG
Wire TerminationScrew - Rising Cage ClampScrew - Rising Cage Clamp

MKDS Series

Fixed Terminal Blocks MKDS 1/ 2-3 81 SMD B

PartWire TerminationTorque - Screw [Max]Torque - Screw [Max]Torque - Screw [Min]Torque - Screw [Min]VoltageNumber of LevelsMounting TypeMating OrientationPositions Per LevelHousing MaterialWire Gauge [Max]Wire Gauge [Min]Screw ThreadCurrentPitch [x]Pitch [x]ColorFeatures
Phoenix Contact
1751264
Screw - Rising Cage Clamp
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
300 V
1
Through Hole
Horizontal with Board
4
Polyamide (PA), Nylon
30 AWG
16 AWG
M2
10 A
3.5 mm
0.138 in
Green
Phoenix Contact
1727230
Screw - Rising Cage Clamp
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
300 V
1
Surface Mount
Horizontal with Board
2
Polyamide (PA), Nylon, Glass Filled
30 AWG
16 AWG
M2
10 A
3.81 mm
0.15 in
Black
Phoenix Contact
1905201
Screw - Rising Cage Clamp
5.3 Lb-In
0.6 Nm
0.5 Nm
4.4 Lb-In
300 V
1
Through Hole
Horizontal with Board
5
Polyamide (PA), Nylon
30 AWG
12 AWG
M3
15 A
5.08 mm
0.2 in
Green
Interlocking (Side)
Phoenix Contact
1712708
Screw - Rising Cage Clamp
5.3 Lb-In
0.6 Nm
0.5 Nm
4.4 Lb-In
300 V
1
Through Hole
Horizontal with Board
8
Polyamide (PA), Nylon
30 AWG
12 AWG
M3
15 A
5.08 mm
0.2 in
Green
Interlocking (Side)
Phoenix Contact
1709759
Screw - Rising Cage Clamp
13.3 Lb-In
1.5 Nm
1.2 Nm
10.6 Lb-In
600 V
1
Through Hole
Horizontal with Board
9
Polyamide (PA), Nylon
20 AWG
6 AWG
M4
60 A
10.16 mm
0.4 in
Green
Interlocking (Side)
Phoenix Contact
1985975
Screw - Rising Cage Clamp
5.3 Lb-In
0.6 Nm
0.5 Nm
4.4 Lb-In
300 V
1
Through Hole
Horizontal with Board
3
Polyamide (PA), Nylon
30 AWG
12 AWG
M3
15 A
5 mm
0.197 in
Black
Interlocking (Side)
Phoenix Contact
1709717
Screw - Rising Cage Clamp
13.3 Lb-In
1.5 Nm
1.2 Nm
10.6 Lb-In
600 V
1
Through Hole
Horizontal with Board
5
Polyamide (PA), Nylon
20 AWG
6 AWG
M4
60 A
10.16 mm
0.4 in
Green
Interlocking (Side)
Phoenix Contact
1985836
Screw - Rising Cage Clamp
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
300 V
1
Through Hole
Horizontal with Board
3
Polyamide (PA), Nylon
30 AWG
16 AWG
M2
10 A
3.81 mm
0.15 in
Black
Phoenix Contact
1751332
Screw - Rising Cage Clamp
2.2 Lb-In
0.25 Nm
0.22 Nm
1.9 Lb-In
300 V
1
Through Hole
Horizontal with Board
11
Polyamide (PA), Nylon
30 AWG
16 AWG
M2
10 A
3.5 mm
0.138 in
Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 3.60
DigikeyBulk 1$ 5.06
SagerN/A 50$ 6.69
150$ 6.44
250$ 6.22

Description

General part information

MKDS Series

Fixed Terminal Blocks MKDS 1/ 2-3 81 SMD B
