770894-6
ActiveTE Connectivity AMP Connectors

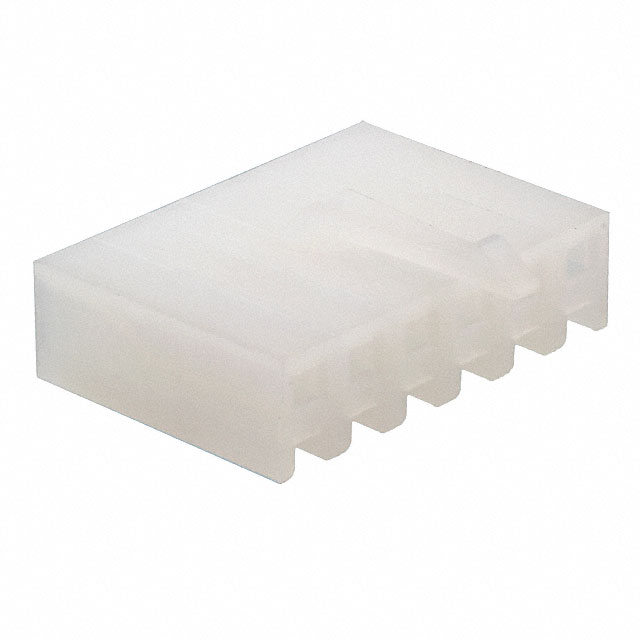

CONN RCPT HSG 6POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770894-6
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 6POS 3.96MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770894-6 | 770894 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Board Latch | Board Latch |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 2 - 7 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.156 in | 0.156 in |
| Pitch [x] | 3.96 mm | 3.96 mm |
770894 Series
CONN RCPT HSG 5POS 3.96MM
| Part | Fastening Type | Color | Insulation Material | Pitch [x] | Pitch [x] | Number of Rows | Contact Type | Note | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 770894-5 | Board Latch | Natural | Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | 1 | Female Socket | Contacts Not Included | Crimp | 105 ░C | -55 °C | Receptacle | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 770894-4 | Board Latch | Natural | Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | 1 | Female Socket | Contacts Not Included | Crimp | 105 ░C | -55 °C | Receptacle | Free Hanging (In-Line) | 4 |
TE Connectivity AMP Connectors 770894-2 | Board Latch | Natural | Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | 1 | Female Socket | Contacts Not Included | Crimp | 105 ░C | -55 °C | Receptacle | Free Hanging (In-Line) | 2 |
TE Connectivity AMP Connectors 770894-7 | Board Latch | Natural | Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | 1 | Female Socket | Contacts Not Included | Crimp | 105 ░C | -55 °C | Receptacle | Free Hanging (In-Line) | 7 |
TE Connectivity AMP Connectors 770894-3 | Board Latch | Natural | Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | 1 | Female Socket | Contacts Not Included | Crimp | 105 ░C | -55 °C | Receptacle | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 770894-6 | Board Latch | Natural | Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | 1 | Female Socket | Contacts Not Included | Crimp | 105 ░C | -55 °C | Receptacle | Free Hanging (In-Line) | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.99 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.89 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.61 | |||
| 2500 | $ 0.57 | |||
Description
General part information
770894 Series
6 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
