770894-5

Active

TE Connectivity AMP Connectors

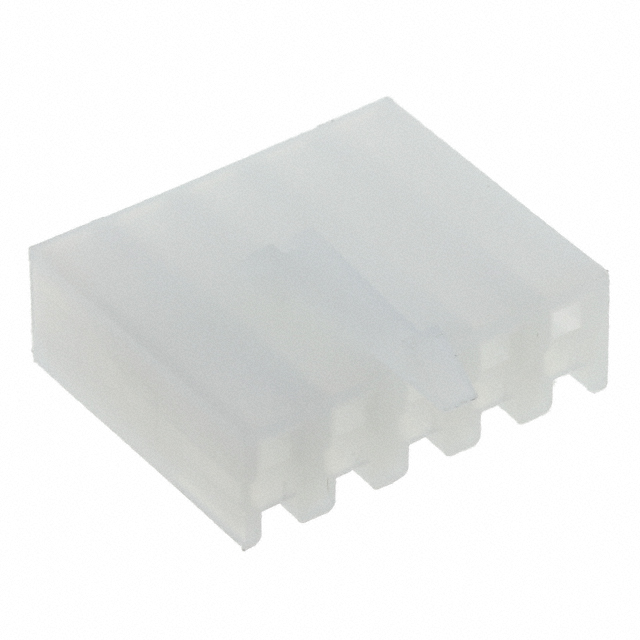

CONN RCPT HSG 5POS 3.96MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 5POS 3.96MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.49

General part information

5 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 5POS 3.96MM

Part	Fastening Type	Color	Insulation Material	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Note	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 770894-5	Board Latch	Natural	Nylon, Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)
TE Connectivity AMP Connectors 770894-4	Board Latch	Natural	Nylon, Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)	4
TE Connectivity AMP Connectors 770894-2	Board Latch	Natural	Nylon, Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)	2
TE Connectivity AMP Connectors 770894-7	Board Latch	Natural	Nylon, Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)	7
TE Connectivity AMP Connectors 770894-3	Board Latch	Natural	Nylon, Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)
TE Connectivity AMP Connectors 770894-6	Board Latch	Natural	Nylon, Polyamide (PA)	0.156 in	3.96 mm	1	Female Socket	Contacts Not Included	Crimp	105 ░C	-55 °C	Receptacle	Free Hanging (In-Line)	6
