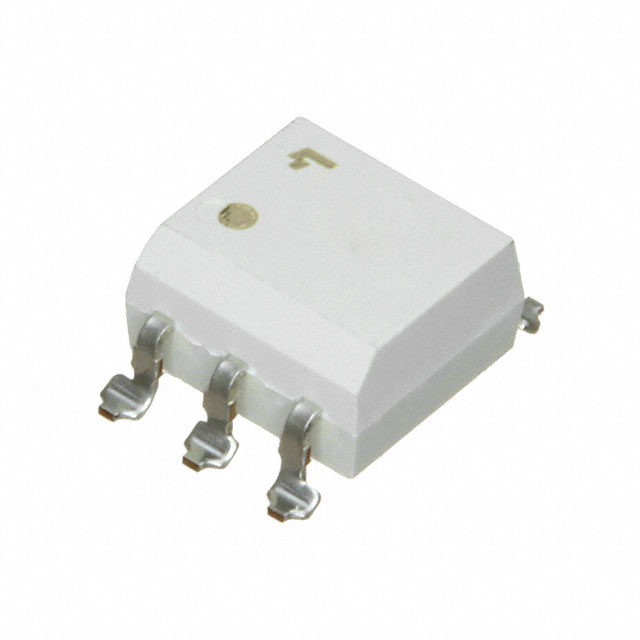

TLP4590A(D4TP1,F
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NC 1.2A 0-60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLP4590A(D4TP1,F
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NC 1.2A 0-60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP4590A(D4TP1,F |
|---|---|
| Approval Agency | VDE, UL, cUL |
| Circuit | SPST-NC (1 Form B) |
| Load Current | 1.2 A |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 600 mOhm |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in |
| Package / Case | 6-SMD |
| Supplier Device Package | 6-SMD |
| Termination Style | SMD (SMT) Tab |
| Voltage - Input [Max] | 1.4 VDC |
| Voltage - Input [Min] | 1.1 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
TLP459 Series
| Part | Load Current | Voltage - Load [Min] | Voltage - Load [Max] | Package / Case | Output Type | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | On-State Resistance (Max) [Max] | Termination Style | Mounting Type | Supplier Device Package | Package / Case | Package / Case | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-SMD Gull Wing | AC DC | cUL UL VDE | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | SMD (SMT) Tab | Surface Mount | 6-SMD | ||||
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-DIP | AC DC | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | PC Pin | Through Hole | 6-DIP | 10.16 mm | 10.16 mm | |||
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-SMD Gull Wing | AC DC | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | Gull Wing | Surface Mount | 6-SMD | |||||
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-SMD Gull Wing | AC DC | cUL UL VDE | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | SMD (SMT) Tab | Surface Mount | 6-SMD | 1.1 V | 1.4 VDC | ||
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-SMD | AC DC | cUL UL VDE | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | SMD (SMT) Tab | Surface Mount | 6-SMD | 7.62 mm | 0.3 in | ||
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-SMD | AC DC | cUL UL VDE | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | SMD (SMT) Tab | Surface Mount | 6-SMD | 7.62 mm | 0.3 in | 1.1 V | 1.4 VDC |
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-SMD Gull Wing | AC DC | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | Gull Wing | Surface Mount | 6-SMD | |||||
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-SMD Gull Wing | AC DC | cUL UL VDE | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | SMD (SMT) Tab | Surface Mount | 6-SMD | 1.1 V | 1.4 VDC | ||
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-DIP | AC DC | cUL UL VDE | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | PC Pin | Through Hole | 6-DIP | 10.16 mm | 10.16 mm | ||
Toshiba Semiconductor and Storage | 1.2 A | 0 V | 60 V | 6-SMD Gull Wing | AC DC | cUL UL VDE | -40 °C | 110 °C | SPST-NC (1 Form B) | 600 mOhm | Gull Wing | Surface Mount | 6-SMD |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.68 | |
| 10 | $ 3.21 | |||
| 25 | $ 3.04 | |||
| 50 | $ 2.92 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.66 | |||
| 500 | $ 2.55 | |||
| Digi-Reel® | 1 | $ 3.68 | ||
| 10 | $ 3.21 | |||
| 25 | $ 3.04 | |||
| 50 | $ 2.92 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.66 | |||
| 500 | $ 2.55 | |||
| Tape & Reel (TR) | 1500 | $ 2.39 | ||
| 3000 | $ 2.30 | |||
Description
General part information
TLP459 Series
Solid State SPST-NC (1 Form B) 6-SMD (0.300", 7.62mm)
