333-032-558-102

Active

EDAC Inc.

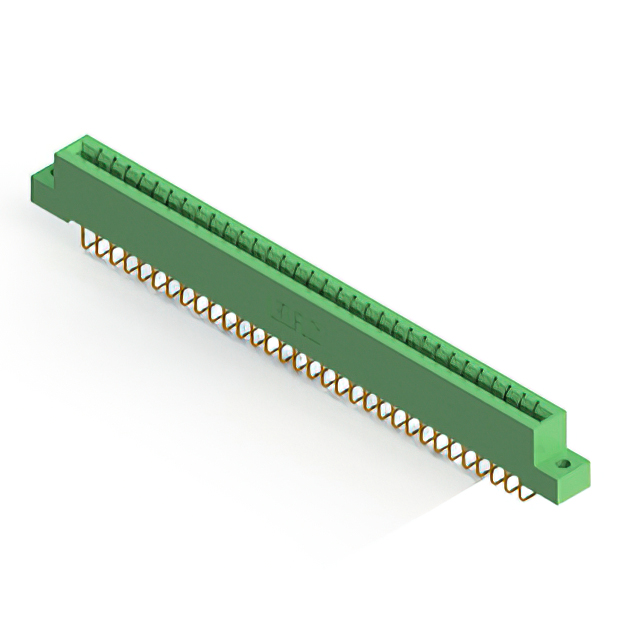

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN

333-032-558-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-032-558-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions/Bay/Row [custom]	32
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

333-032 Series

...

Part	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish	Pitch [x]	Pitch [x]	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Card Type	Color	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination Rows	Flange Feature	Flange Feature	Features
EDAC Inc. 333-032-521-212	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Through Hole	Polyester Thermoplastic	16	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Dual Edge	Green	2	10 Áin	0.25 Ám	Copper Alloy	2
EDAC Inc. 333-032-559-812	Dual		Side Mount Opening Unthreaded		Through Hole Right Angle	Polyester Thermoplastic	16	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Dual Edge	Green	2	10 Áin	0.25 Ám	Copper Alloy	2	3.25 mm	0.128 in
EDAC Inc. 333-032-521-101	Single				Through Hole	Polyester Thermoplastic	32	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Single Edge	Green	1	10 Áin	0.25 Ám	Copper Alloy	1
EDAC Inc. 333-032-542-207	Dual		Flush Mount M3 Threaded Insert Top Opening		Through Hole	Polyester Thermoplastic	16	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Dual Edge	Green	2	10 Áin	0.25 Ám	Copper Alloy	2
EDAC Inc. 333-032-541-103	Single	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Through Hole	Polyester Thermoplastic	32	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Single Edge	Green	1	10 Áin	0.25 Ám	Copper Alloy	1
EDAC Inc. 333-032-540-608	Single		4-40 Threaded Insert Top Mount Opening		Through Hole	Polyester Thermoplastic	32	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Single Edge	Green	1	10 Áin	0.25 Ám	Copper Alloy	1
EDAC Inc. 333-032-558-102	Single	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Through Hole Right Angle	Polyester Thermoplastic	32	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Single Edge	Green	1	10 Áin	0.25 Ám	Copper Alloy	1
EDAC Inc. 333-032-555-212	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Board Edge Straddle Mount	Polyester Thermoplastic	16	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Dual Edge	Green	2	10 Áin	0.25 Ám	Copper Alloy	2			Card Extender
EDAC Inc. 333-032-541-604	Single	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Through Hole	Polyester Thermoplastic	32	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Single Edge	Green	1	10 Áin	0.25 Ám	Copper Alloy	1
EDAC Inc. 333-032-544-212	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Through Hole	Polyester Thermoplastic	16	-40 °C	105 ░C	Cantilever	Gold	0.156 in	3.96 mm	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Non Specified - Dual Edge	Green	2	10 Áin	0.25 Ám	Copper Alloy	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 11.58
Newark	Each	25	$ 11.47
		50	$ 10.88
		100	$ 10.29
		250	$ 9.71

Description

General part information

333-032 Series

32 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
