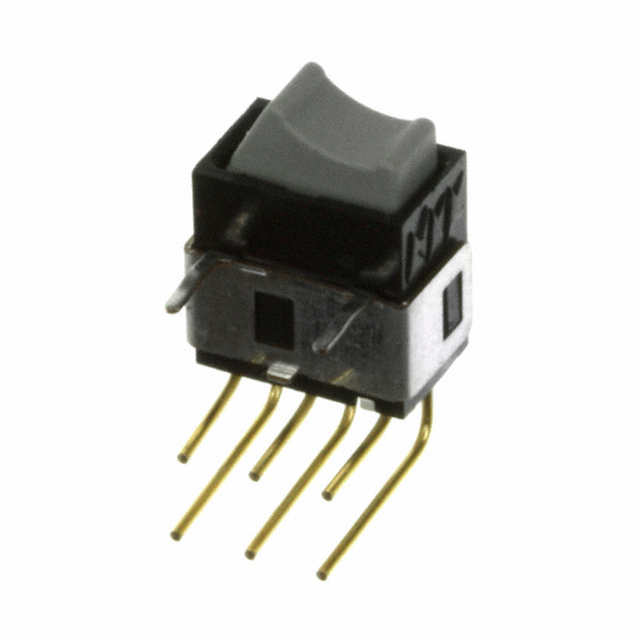

GW22RHH

Active

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Actuator Type	Electrical Life	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Circuit	Switch Function	Mounting Type	Voltage Rating - DC	Actuator Marking	Approval Agency	Features
NKK Switches GW22RHV	PC Pin	Concave (Curved)	50000 Cycles	28 V	-30 ░C	85 °C	0.4 VA	DPDT	On-On	Right Angle Through Hole Vertical	28 V	No Marking	CSA UL	Sealed - Flux Protection
NKK Switches GW22RHH	PC Pin	Concave (Curved)	50000 Cycles	28 V	-30 ░C	85 °C	0.4 VA	DPDT	On-On	Through Hole Right Angle	28 V	No Marking	CSA UL	Sealed - Flux Protection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle
