T2050001010-000
ActiveTE Connectivity AMP Connectors
CNM-10
Deep-Dive with AI
Search across all available documentation for this part.
T2050001010-000
ActiveTE Connectivity AMP Connectors
CNM-10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2050001010-000 | T205 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Silver | Silver |
| Contact Finish Thickness | 2 µm | 2 µm |
| Contact Finish Thickness | 78.7 µin | 78.7 µin |
| Contact Termination | Crimp | Crimp |
| Contact Type | - | CEF, DEF, CEM, DEM, DE, CE |
| Current Rating (Amps) | - | 16 A |
| Gender | - | Female, Male |
| Housing Material | - | Polycarbonate (PC) |
| Material Flammability Rating | - | UL94 V-0 |
| Number of Positions | - | 48 |
| Number of Positions | - | 18+Ground, 10+Ground, 46+Ground, 64+Ground, 40+Ground, 20+Ground |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Pin or Socket | Pin | Pin, Socket |
| Size | - | H16B, H10B, H6B, H24B |
| Termination Style | - | Crimp |
| Voltage Rating | - | 400 - 500 V |
| Wire Gauge | 10 mm˛ | 10 - 35 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.31 | |
| 10 | $ 7.24 | |||
| 30 | $ 7.05 | |||
| 50 | $ 6.86 | |||
| 100 | $ 6.44 | |||
| 250 | $ 6.40 | |||
| 500 | $ 6.02 | |||
| 1000 | $ 5.37 | |||
T205 Series
INSERT FML 48POS+1GND HEEE-048-F
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Connector Type | Housing Material | Gender | Material Flammability Rating | Contact Type | Termination Style | Current Rating (Amps) | Size | Number of Positions | Number of Positions | Pin or Socket | Contact Termination | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2059482201-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H16B | 48 | ||||||||
TE Connectivity AMP Connectors T2050182101-000 | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H10B | 18+Ground | ||||||||||
TE Connectivity AMP Connectors T2050102201-000 | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H6B | 10+Ground | ||||||||||
TE Connectivity AMP Connectors T2059322101-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H16B | |||||||||
TE Connectivity AMP Connectors T2059482101-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H16B | 48 | ||||||||
TE Connectivity AMP Connectors T2050922201-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H24B | 46+Ground | ||||||||
TE Connectivity AMP Connectors T2059182201-000 | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H10B | 18+Ground | ||||||||||
TE Connectivity AMP Connectors T2050001025-000 | Pin | Crimp | 25 mm² | 2 µm | 78.7 µin | Silver | ||||||||||||||
TE Connectivity AMP Connectors T2059722201-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H24B | |||||||||
TE Connectivity AMP Connectors T2050322201-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CE, DE | Crimp | 16 A | H16B | Gray | ||||||||
TE Connectivity AMP Connectors T2059182101-000 | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H10B | 18+Ground | ||||||||||
TE Connectivity AMP Connectors T2059322201-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H16B | |||||||||
TE Connectivity AMP Connectors T2050323101-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H10B | |||||||||
TE Connectivity AMP Connectors T2050102101-000 | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H6B | 10+Ground | ||||||||||
TE Connectivity AMP Connectors T2050001016-000 | Pin | Crimp | 16 mm² | 2 µm | 78.7 µin | Silver | ||||||||||||||
TE Connectivity AMP Connectors T2050962201-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H16B | 48 | ||||||||
TE Connectivity AMP Connectors T2059643201-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H24B | 64+Ground | ||||||||
TE Connectivity AMP Connectors T2051283101-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H24B | 64+Ground | ||||||||
TE Connectivity AMP Connectors T2050402101-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H16B | 40+Ground | ||||||||
TE Connectivity AMP Connectors T2050722101-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H24B | |||||||||
TE Connectivity AMP Connectors T2050001035-000 | Pin | Crimp | 35 mm˛ | 2 µm | 78.7 µin | Silver | ||||||||||||||
TE Connectivity AMP Connectors T2059202101-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H6B | 20+Ground | ||||||||
TE Connectivity AMP Connectors T2050462201-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CE, DE | Crimp | 16 A | H24B | 46+Ground | Gray | |||||||
TE Connectivity AMP Connectors T2050002010-000 | Socket | Crimp | 10 mm˛ | 2 µm | 78.7 µin | Silver | ||||||||||||||
TE Connectivity AMP Connectors T2050922101-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H24B | 46+Ground | ||||||||
TE Connectivity AMP Connectors T2050722201-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H24B | |||||||||
TE Connectivity AMP Connectors T2050182201-000 | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H10B | 18+Ground | ||||||||||
TE Connectivity AMP Connectors T2059402201-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H16B | 40+Ground | ||||||||
TE Connectivity AMP Connectors T2050001010-000 | Pin | Crimp | 10 mm˛ | 2 µm | 78.7 µin | Silver | ||||||||||||||
TE Connectivity AMP Connectors T2050323201-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H10B | |||||||||
TE Connectivity AMP Connectors T2050482101-000 | 125 °C | -40 °C | 400 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H16B | 48 | ||||||||
TE Connectivity AMP Connectors T2050802201-000 | 500 V | Insert without Contacts | Polycarbonate (PC) | Female | UL94 V-0 | CEF, DEF | Crimp | 16 A | H16B | 40+Ground | ||||||||||
TE Connectivity AMP Connectors T2050643101-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H24B | 64+Ground | ||||||||
TE Connectivity AMP Connectors T2050642101-000 | 125 °C | -40 °C | 500 V | Insert without Contacts | Polycarbonate (PC) | Male | UL94 V-0 | CEM, DEM | Crimp | 16 A | H16B |
Description
General part information
T205 Series

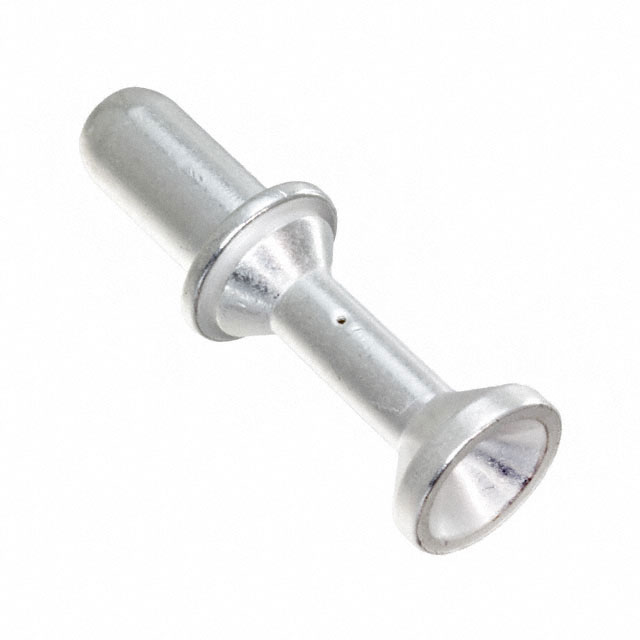

Contact Crimp Pin 10mm² Silver
