DX0506/GN/24
ActiveBULGIN LIMITED

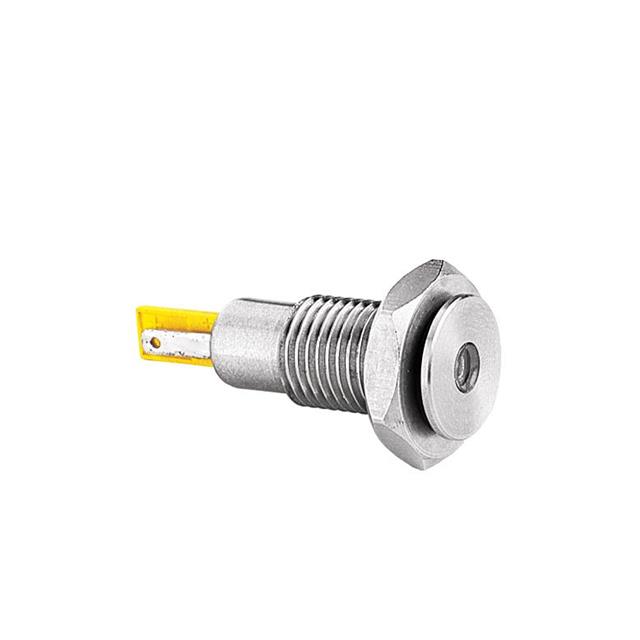

LED PANEL MOUNT INDICATOR, GREEN, 24 VDC, 12.1 MM, 25 MA, 100 MCD, IP67
DX0506/GN/24
ActiveBULGIN LIMITED
LED PANEL MOUNT INDICATOR, GREEN, 24 VDC, 12.1 MM, 25 MA, 100 MCD, IP67
Description
General part information
DX0506 Series
LED Panel Indicator Green 24V 25mA Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | DX0506/GN/24 |
|---|---|
| Current | 25 mA |
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Style | Round, Flat Top |
| Millicandela Rating | 100 mcd |
| Panel Cutout Dimension | 0.48 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Solder Lug |
| Type | LED |
| Voltage | 24 V |
