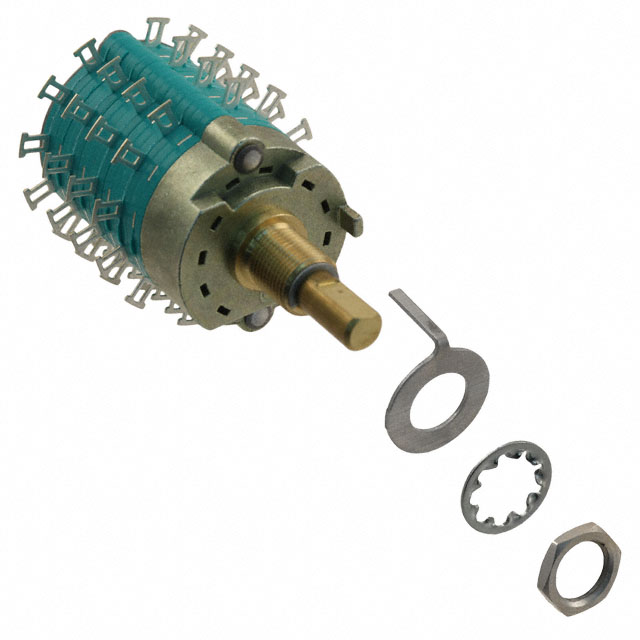

C4D0412N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-12POS 300MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-12POS 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C4D0412N-A

Actuator Length [x]	0.5 in
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	SP12T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	300 mA, 500 mA
Depth Behind Panel [z]	41.76 mm
Index Stops	Adjustable
Number of Decks	4
Number of Poles per Deck	1
Number of Positions [Max]	12
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Number of Decks	Actuator Type [diameter]	Actuator Type	Termination Style	Contact Finish	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Number of Poles per Deck	Index Stops	Contact Material	Contact Timing	Voltage Rating - AC	Circuit per Deck	Number of Positions [Max]	Number of Positions [Min]	Depth Behind Panel [z]	Angle of Throw	Voltage Rating - DC
ELECTROSWITCH C4D0412N-A	300 mA 500 mA	4	6.35 mm	Flatted	Solder Lug	Silver	9.78 mm	0.5 in	1	Adjustable	Brass	Non-Shorting	125 V	SP12T	12	2	41.76 mm	30 °	28 V
ELECTROSWITCH C4D0412S-A	300 mA 500 mA	4	6.35 mm	Flatted	Solder Lug	Silver	9.78 mm	0.5 in	1	Adjustable	Brass	Shorting	125 V	SP12T	12	2	41.76 mm	30 °	28 V
