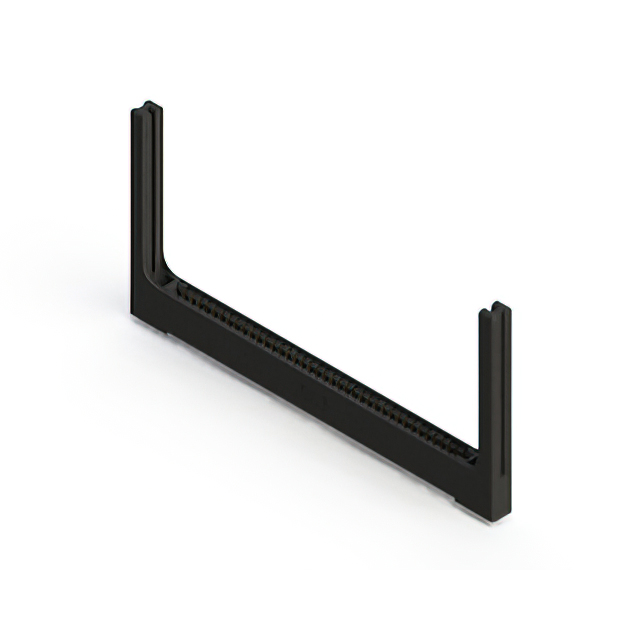

396-039-520-158
ActiveEDAC Inc.
CONN EDGE SGL FMALE 39POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-039-520-158
ActiveEDAC Inc.
CONN EDGE SGL FMALE 39POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-039-520-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 39 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
396-039 Series
| Part | Flange Feature | Termination | Material - Insulation | Read Out | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Number of Positions | Mounting Type | Card Type | Color | Gender | Number of Rows | Contact Material | Contact Finish | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Solder | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Solder | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in | |||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Solder | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Solder Wire Wrap | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole Right Angle | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Top Mount Opening Unthreaded | Solder Wire Wrap | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole Right Angle | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in | |||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Solder | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Solder | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Solder | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Solder | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Polyester Thermoplastic | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 39 | 39 | Through Hole | Non Specified - Single Edge | Black | Female | 1 | Copper Alloy | Gold | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
396-039 Series
39 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
