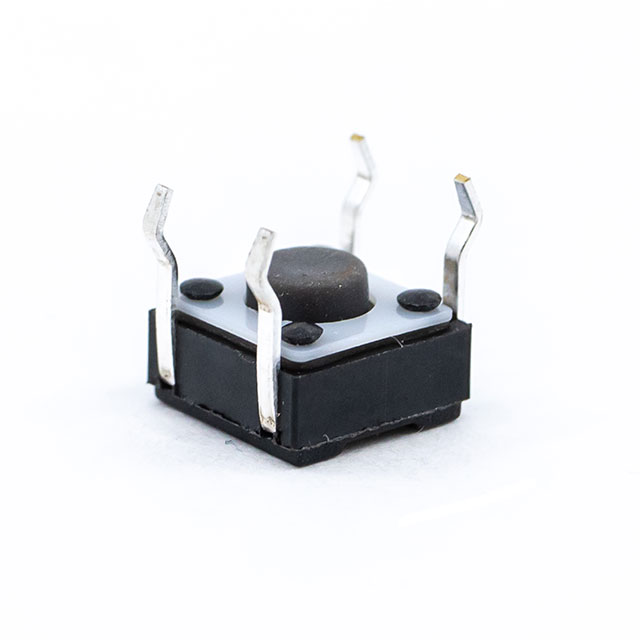

RT1105AF260Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	RT1105AF260Q

Actuator Height off PCB, Vertical [z]	4.4 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.8 mm
Outline [y]	6.8 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Illumination	Switch Travel	Termination Style	Actuator Type	Actuator Orientation	Contact Rating @ Voltage	Switch Function	Outline [x]	Outline [y]	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Circuit
E-Switch RT1105AF260Q	Non-Illuminated	0.25 mm	PC Pin	Standard	Top Actuated	0.05 A 12 VDC	Off-Mom	6.8 mm	6.8 mm	260 gf	85 °C	-20 C	4.4 mm	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole, Reverse
