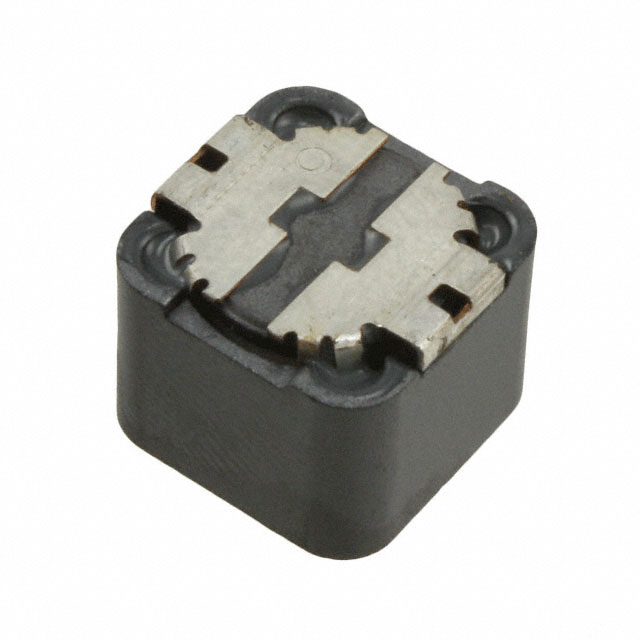

Specification	SRR1210-181M

Current - Saturation (Isat)	1.6 A
Current Rating	1.9 A
DC Resistance (DCR) (Max)	250 mOhm
Frequency - Self Resonant	1.8 MHz
Height - Seated (Max)	0.394 in
Inductance	180 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Nonstandard
Q	14
Shielding	Shielded
Size / Dimension Length	0.472 in
Size / Dimension Width	0.472 in
Tolerance	20 %
Type	Drum Core, Wirewound

SRR1210 Series

Part	Q	Current Rating	Material - Core	Inductance Frequency - Test	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Shielding	Height - Seated (Max)	DC Resistance (DCR) (Max)	Frequency - Self Resonant	Inductance	Tolerance	Mounting Type	Current - Saturation (Isat)	Type
Bourns Inc. SRR1210-820M	15	2.8 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	112 mOhm	3.5 MHz	82 µH	20 %	Surface Mount	2.5 A	Drum Core Wirewound
Bourns Inc. SRR1210-220M	16	5.2 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	38 mOhm	8 MHz	22 µH	20 %	Surface Mount	4.5 A	Drum Core Wirewound
Bourns Inc. SRR1210-6R8Y	12	7.9 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	15 mOhm	20 MHz	6.8 µH	30 %	Surface Mount	8.3 A	Drum Core Wirewound
Bourns Inc. SRR1210-180M	13	5.5 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	35 mOhm	8 MHz	18 µH	20 %	Surface Mount	5.1 A	Drum Core Wirewound
Bourns Inc. SRR1210-391M	16	1.3 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	600 mOhm	1.3 MHz	390 µH	20 %	Surface Mount	1.1 A	Drum Core Wirewound
Bourns Inc. SRR1210-471M	12	1.2 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	820 mOhm	850 kHz	0.47 mH	20 %	Surface Mount	1 A	Drum Core Wirewound
Bourns Inc. SRR1210-181M	14	1.9 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	250 mOhm	1.8 MHz	180 µH	20 %	Surface Mount	1.6 A	Drum Core Wirewound
Bourns Inc. SRR1210-102M	22	0.75 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	1.65 Ohm	850 kHz	1 mH	20 %	Surface Mount	0.7 mA	Drum Core Wirewound
Bourns Inc. SRR1210-270M	16	5 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	40 mOhm	6.5 MHz	27 µH	20 %	Surface Mount	4.2 A	Drum Core Wirewound
Bourns Inc. SRR1210-561M	12	1.1 A	Ferrite	100 kHz	0.472 in	0.472 in	125 °C	-40 °C	Nonstandard	Shielded	0.394 in	900 mOhm	850 kHz	560 µH	20 %	Surface Mount	0.95 mA	Drum Core Wirewound
