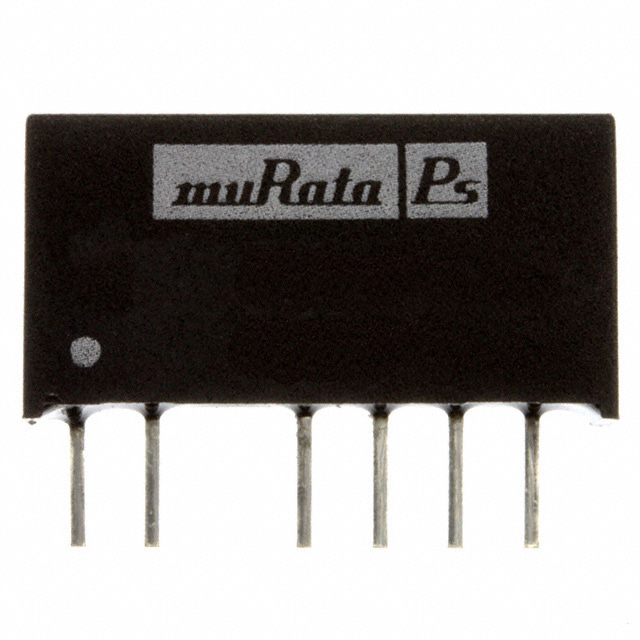

NMD050509SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 9V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 9V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 5V 9V 100mA, 56mA 4.5V - 5.5V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NMD050509SC	NMD05 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	100 mA	100 mA
Current - Output (Max)	56 mA	56 - 100 mA
Efficiency	80 %	70 - 80 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Package / Case	7-SIP Module, 6 Leads	14-DIP Module, 7 Leads, 7-SIP Module, 6 Leads
Size / Dimension	-	0.77 - 19.6 in
Size / Dimension	-	0.27 - 6.9 "
Size / Dimension	-	0.24 - 9.9 "
Size / Dimension [x]	19.5 mm	19.5 mm
Size / Dimension [x]	0.77 "	0.77 - 19.6 "
Size / Dimension [y]	6 mm	6 mm
Size / Dimension [y]	0.24 in	0.24 - 6.1 in
Size / Dimension [z]	0.39 in	0.39 - 9.9 in
Size / Dimension [z]	10 mm	10 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	5 V	5 V
Voltage - Output 2	9 V	5 - 15 V

DC DC CONVERTER 5V 5V 1W

Part	Applications	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 1	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Murata Power Solutions Inc. NMD050505DC	ITE (Commercial)	100 mA	100 mA	5 V	Isolated Module	5.5 V	1000 V	70 °C	0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm	70 %	2	4.5 V	14-DIP Module, 7 Leads	5 V	Through Hole
Murata Power Solutions Inc. NMD050509SC	ITE (Commercial)	56 mA	100 mA	9 V	Isolated Module	5.5 V	1000 V	70 °C				80 %	2	4.5 V	7-SIP Module, 6 Leads	5 V	Through Hole	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "
Murata Power Solutions Inc. NMD050505SC	ITE (Commercial)	100 mA	100 mA	5 V	Isolated Module	5.5 V	1000 V	70 °C	0.77 in	0.39 in	0.24 "	70 %	2	4.5 V	7-SIP Module, 6 Leads	5 V	Through Hole		9.9 mm		6.1 mm		19.6 mm
Murata Power Solutions Inc. NMD050515SC	ITE (Commercial)			15 V	Isolated Module	5.5 V	1000 V	70 °C	0.77 in	0.39 in	0.24 "	80 %	2	4.5 V	7-SIP Module, 6 Leads	5 V	Through Hole		9.9 mm		6.1 mm		19.6 mm
Murata Power Solutions Inc. NMD050509DC	ITE (Commercial)	56 mA	100 mA	9 V	Isolated Module	5.5 V	1000 V	70 °C	0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm	80 %	2	4.5 V	14-DIP Module, 7 Leads	5 V	Through Hole
