NMD050509DC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 9V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

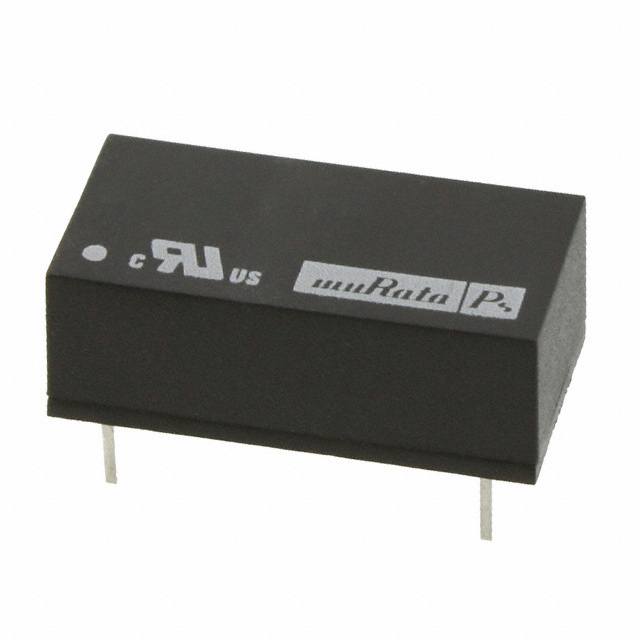

NMD050509DC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 9V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NMD050509DC | NMD05 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | 100 mA | 100 mA |
| Current - Output (Max) | 56 mA | 56 - 100 mA |
| Efficiency | 80 % | 70 - 80 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 14-DIP Module, 7 Leads | 14-DIP Module, 7 Leads, 7-SIP Module, 6 Leads |
| Size / Dimension | - | 6 mm |
| Size / Dimension | - | 0.39 - 9.9 in |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 0.24 - 6.1 in |
| Size / Dimension | - | 19.5 mm |
| Size / Dimension | - | 0.77 - 19.6 " |
| Size / Dimension [x] | 0.77 in, 19.6 mm | 0.77 - 19.6 in |
| Size / Dimension [y] | 0.39 ", 9.9 mm | 0.24 - 9.9 " |
| Size / Dimension [z] | 0.27 ", 6.9 mm | 0.27 - 6.9 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 5 V | 5 V |
| Voltage - Output 2 | 9 V | 5 - 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NMD05 Series
DC DC CONVERTER 5V 5V 1W
| Part | Applications | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Type | Voltage - Input (Max) [Max] | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Number of Outputs | Voltage - Input (Min) [Min] | Package / Case | Voltage - Output 1 | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMD050505DC | ITE (Commercial) | 100 mA | 100 mA | 5 V | Isolated Module | 5.5 V | 1000 V | 70 °C | 0 °C | 0.77 in, 19.6 mm | 0.27 ", 6.9 mm | 0.39 ", 9.9 mm | 70 % | 2 | 4.5 V | 14-DIP Module, 7 Leads | 5 V | Through Hole | ||||||
Murata Power Solutions Inc. NMD050509SC | ITE (Commercial) | 56 mA | 100 mA | 9 V | Isolated Module | 5.5 V | 1000 V | 70 °C | 0 °C | 80 % | 2 | 4.5 V | 7-SIP Module, 6 Leads | 5 V | Through Hole | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | |||
Murata Power Solutions Inc. NMD050505SC | ITE (Commercial) | 100 mA | 100 mA | 5 V | Isolated Module | 5.5 V | 1000 V | 70 °C | 0 °C | 0.77 in | 0.39 in | 0.24 " | 70 % | 2 | 4.5 V | 7-SIP Module, 6 Leads | 5 V | Through Hole | 9.9 mm | 6.1 mm | 19.6 mm | |||
Murata Power Solutions Inc. NMD050515SC | ITE (Commercial) | 15 V | Isolated Module | 5.5 V | 1000 V | 70 °C | 0 °C | 0.77 in | 0.39 in | 0.24 " | 80 % | 2 | 4.5 V | 7-SIP Module, 6 Leads | 5 V | Through Hole | 9.9 mm | 6.1 mm | 19.6 mm | |||||
Murata Power Solutions Inc. NMD050509DC | ITE (Commercial) | 56 mA | 100 mA | 9 V | Isolated Module | 5.5 V | 1000 V | 70 °C | 0 °C | 0.77 in, 19.6 mm | 0.27 ", 6.9 mm | 0.39 ", 9.9 mm | 80 % | 2 | 4.5 V | 14-DIP Module, 7 Leads | 5 V | Through Hole |
Description
General part information
NMD05 Series
Isolated Module DC DC Converter 2 Output 5V 9V 100mA, 56mA 4.5V - 5.5V Input
