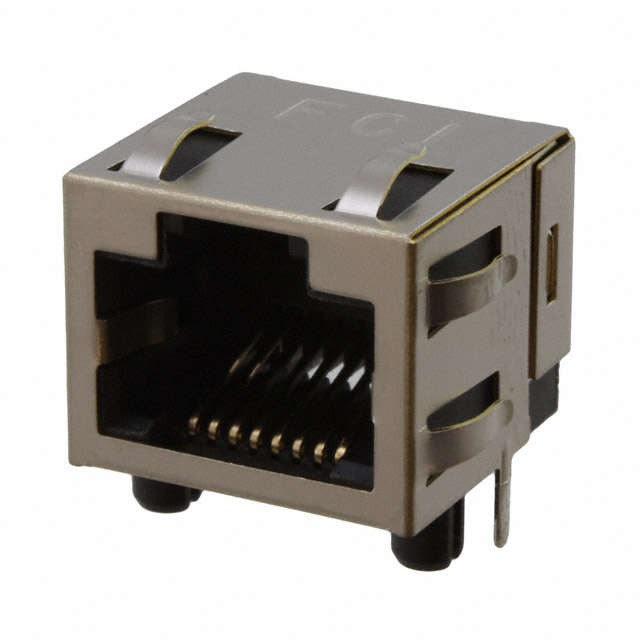

10117863-5036010LF

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	10117863-5036010LF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Features	Board Guide
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat3
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Shielding	Ratings	Mounting Type	Features	Housing Material	Contact Finish Thickness	Connector Type	Number of Positions/Contacts	Contact Material	Number of Rows	Termination	Contact Finish	Tab Direction	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Number of Ports
Amphenol ICC (FCI) 10117863-5036010LF	Shielded EMI Finger	Cat3	Through Hole	Board Guide	Thermoplastic	Flash	Jack	8p8c (RJ45 Ethernet)	Copper Alloy	1	Solder	Gold	Up	90 °	85 °C	-40 °C	Does Not Contain LED	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat3
