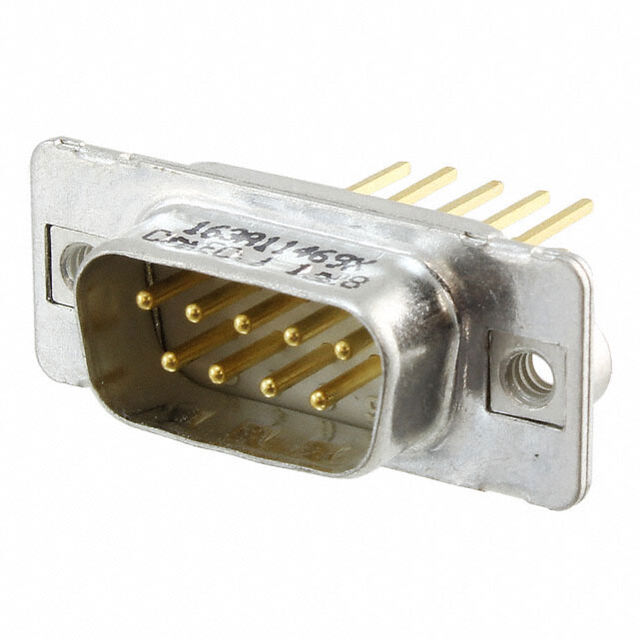

163A11469X

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS PNL MNT WW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

163A11469X

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS PNL MNT WW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	163A11469X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Wire Wrap
Voltage Rating	125 VDC

163A114 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Contact Type	Termination	Features	Connector Style	Material Flammability Rating	Number of Positions	Shell Size, Connector Layout	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Dielectric Material	Number of Rows	Flange Feature	Contact Finish	Color	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness
Amphenol CONEC 163A11409X	-55 °C	125 °C	Copper Alloy	Through Hole	Signal	Solder	Grounding Indents	D-Sub	UL94 V-0	50	5	125 VDC	8 çin	0.203 çm	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	3	4-40 Board Side	Gold	Black	7.5 A
Amphenol CONEC 163A11499X	-55 °C	125 °C	Copper Alloy	Panel Mount Through Hole	Signal	Wire Wrap	Grounding Indents	D-Sub	UL94 V-0	37		125 VDC	8 çin	0.203 çm	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	4-40 Board Side	Gold	Black	7.5 A	4 (DC C)
Amphenol CONEC 163A11469X	-55 °C	125 °C	Copper Alloy	Panel Mount Through Hole	Signal	Wire Wrap	Grounding Indents	D-Sub	UL94 V-0	9		125 VDC	8 çin	0.203 çm	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	4-40 Board Side	Gold	Black	7.5 A		DE E	1
Amphenol CONEC 163A11479X	-55 °C	125 °C	Copper Alloy	Panel Mount Through Hole	Signal	Wire Wrap	Grounding Indents	D-Sub	UL94 V-0	15	2	125 VDC	8 çin	0.203 çm	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	4-40 Board Side	Gold	Black	7.5 A
Amphenol CONEC 163A11429X	-55 °C	125 °C	Copper Alloy	Through Hole	Signal	Solder	Grounding Indents	D-Sub	UL94 V-0	15	2	125 VDC			Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Board Side (M3)	Gold	Black	7.5 A				Flash
Amphenol CONEC 163A11449X	-55 °C	125 °C	Copper Alloy	Through Hole	Signal	Solder	Grounding Indents	D-Sub	UL94 V-0	37		125 VDC			Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Board Side (M3)	Gold	Black	7.5 A	4 (DC C)			Flash
Amphenol CONEC 163A11419X	-55 °C	125 °C	Copper Alloy	Through Hole	Signal	Solder	Grounding Indents	D-Sub	UL94 V-0	9		125 VDC			Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Board Side (M3)	Gold	Black	7.5 A		DE E	1	Flash
Amphenol CONEC 163A11489X	-55 °C	125 °C		Panel Mount Through Hole	Signal	Wire Wrap	Grounding Indents	D-Sub	UL94 V-0			125 VDC			Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	4-40 Board Side	Gold	Black	7.5 A		B DB	3
Amphenol CONEC 163A11439X	-55 °C	125 °C	Copper Alloy	Through Hole	Signal	Solder	Grounding Indents	D-Sub	UL94 V-0			125 VDC			Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Board Side (M3)	Gold	Black	7.5 A		B DB	3	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.76
		10	$ 7.88
		30	$ 7.42
		60	$ 7.23
		120	$ 7.04
		270	$ 6.28
		510	$ 5.90
		1020	$ 5.22

Description

General part information

163A114 Series

9 Position D-Sub Plug, Male Pins Connector
