3476/16 100

Obsolete

3M (TC)

CBL RIBN 16COND 0.05 GRAY 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3476/16 100

Obsolete

3M (TC)

CBL RIBN 16COND 0.05 GRAY 50'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3476/16 100

Cable Type	Flat Cable, Ground Plane
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	25 ft, 50 ft
Length	7.62 m, 15.24 m
Length [x]	100 ft, 10 ft
Length [x]	30.48 m, 3.05 m
Number of Conductors	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2682
Ribbon Thickness	1.19 mm
Ribbon Thickness	0.047 in
Ribbon Width	1.05 in
Ribbon Width	26.67 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3476 Series

Part	Conductor Material	Voltage	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Wire Gauge	Length [x]	Length [x]	Ribbon Thickness	Ribbon Thickness	Ribbon Width	Ribbon Width	Insulation Resistance	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Number of Conductors	Pitch [x]	Pitch [x]	Jacket Color	First Conductor Mark	Length	Length	Ribbon Width [x]	Ribbon Width [x]	Features
3M (TC) 3476/26 100	Copper Tinned	300 V	UL Style 2682	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	100 ft	30.48 m	1.19 mm	0.047 in	1.55 in	39.37 mm	10 GOhm	Unshielded	-20 C	105 ░C	Flat Cable Ground Plane	26	0.05 in	1.27 mm	Gray	Red
3M (TC) 3476/20 100	Copper Tinned	300 V	UL Style 2682	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG			1.19 mm	0.047 in			10 GOhm	Unshielded	-20 C	105 ░C	Flat Cable Ground Plane	20	0.05 in	1.27 mm	Gray	Red	25 ft 50 ft	7.62 m 15.24 m	1.25 "	31.75 mm
3M (TC) 3476/20 300	Copper Tinned	300 V	UL Style 2682	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG			1.19 mm	0.047 in			10 GOhm	Unshielded	-20 C	105 ░C	Flat Cable Ground Plane	20	0.05 in	1.27 mm	Gray	Red	300 ft	91.44 m	1.25 "	31.75 mm
3M (TC) 3476/26 300SF	Copper Tinned	300 V	UL Style 2682	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG			1.19 mm	0.047 in	1.55 in	39.37 mm	10 GOhm	Unshielded	-20 C	105 ░C	Flat Cable Ground Plane	26	0.05 in	1.27 mm	Gray	Red	300 ft	91.44 m			Splice Free
3M (TC) 3476/16 100	Copper Tinned	300 V	UL Style 2682	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	10 ft 100 ft	3.05 m 30.48 m	1.19 mm	0.047 in	1.05 in	26.67 mm	10 GOhm	Unshielded	-20 C	105 ░C	Flat Cable Ground Plane	16	0.05 in	1.27 mm	Gray	Red	25 ft 50 ft	7.62 m 15.24 m
3M (TC) 3476/37 100	Copper Tinned	300 V	UL Style 2682	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	100 ft	30.48 m	1.19 mm	0.047 in			10 GOhm	Unshielded	-20 C	105 ░C	Flat Cable Ground Plane	37	0.05 in	1.27 mm	Gray	Red			2.1 "	53.34 mm
3M (TC) 3476/34 100	Copper Tinned	300 V	UL Style 2682	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	100 ft	30.48 m	1.19 mm	0.047 in	1.95 in	49.53 mm	10 GOhm	Unshielded	-20 C	105 ░C	Flat Cable Ground Plane	34	0.05 in	1.27 mm	Gray	Red	25 ft 50 ft	7.62 m 15.24 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3476 Series

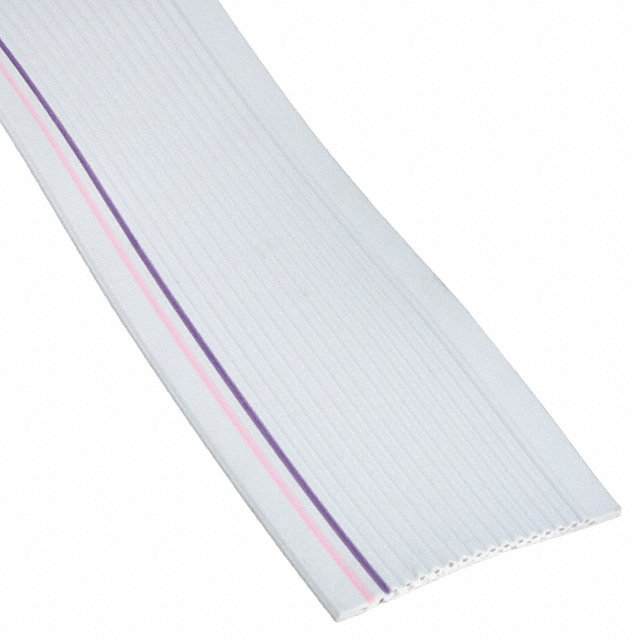

Flat Ribbon Cable Gray 16 Conductors 0.050" (1.27mm) Flat Cable, Ground Plane 50.0' (15.24m)
