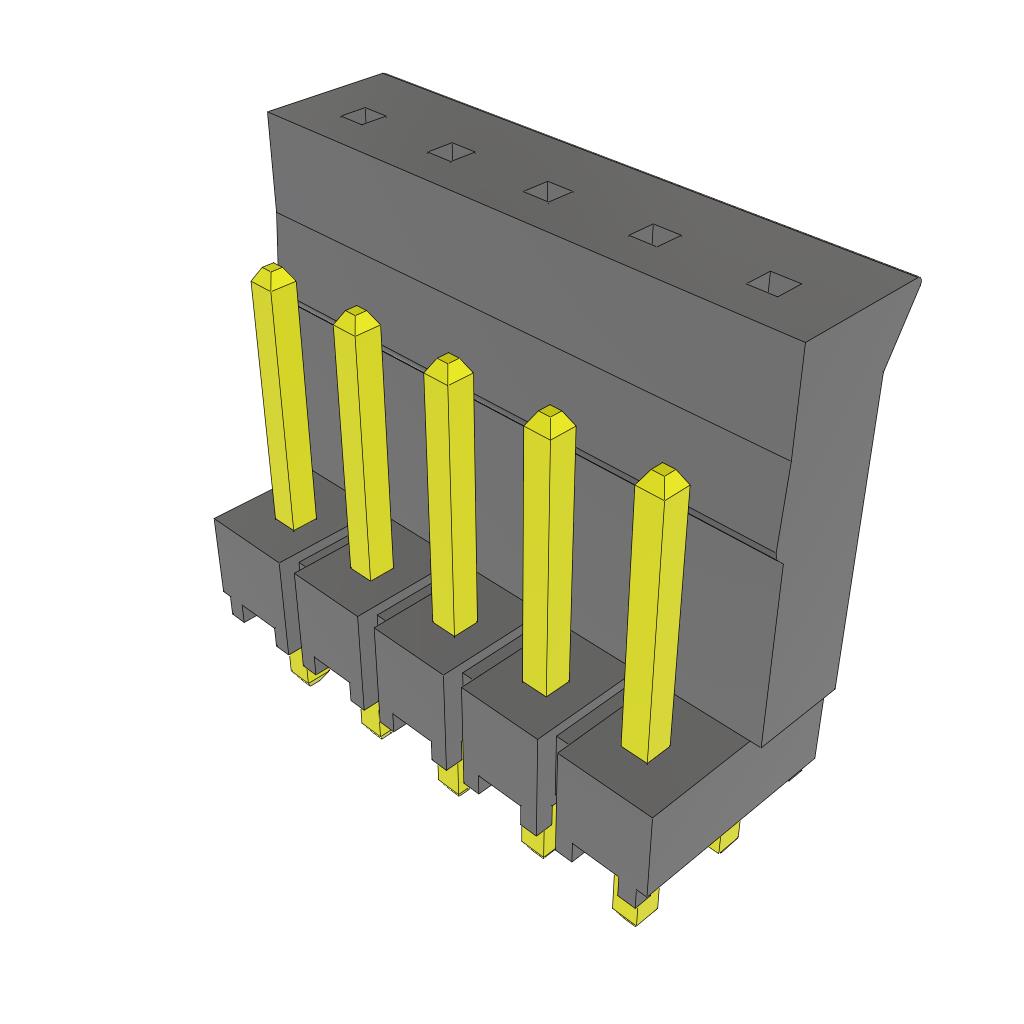

LST-105-07-G-D

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS ".100"" LOCKING HERMAPHRODITIC TERMINAL/SOCKET STRIP\/

Search across all available documentation for this part.

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS ".100"" LOCKING HERMAPHRODITIC TERMINAL/SOCKET STRIP\/

Technical Specifications

Parameters and characteristics for this part

Specification	LST-105-07-G-D

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board [z]	0.435 in
Height Above Board [z]	11.05 mm
Mated Stacking Heights	13.59 mm
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Board to Board & Mezzanine Connectors ".100"" Locking Hermaphroditic Terminal/Socket Strip\/

Part	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish	Number of Positions	Connector Type	Number of Rows	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. LST-102-07-F-D	2.54 mm	0.1 in	0.435 in	11.05 mm	Through Hole	Gold	4	Self Mating Non-Gendered Hermaphroditic	2	13.59 mm	Flash
Samtec Inc. LST-105-07-G-D	2.54 mm	0.1 in	0.435 in	11.05 mm	Through Hole	Gold	10	Self Mating Non-Gendered Hermaphroditic	2	13.59 mm		10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board to Board & Mezzanine Connectors ".100"" Locking Hermaphroditic Terminal/Socket Strip\/
