3220-16-0300-00
ActiveCnC Tech, LLC

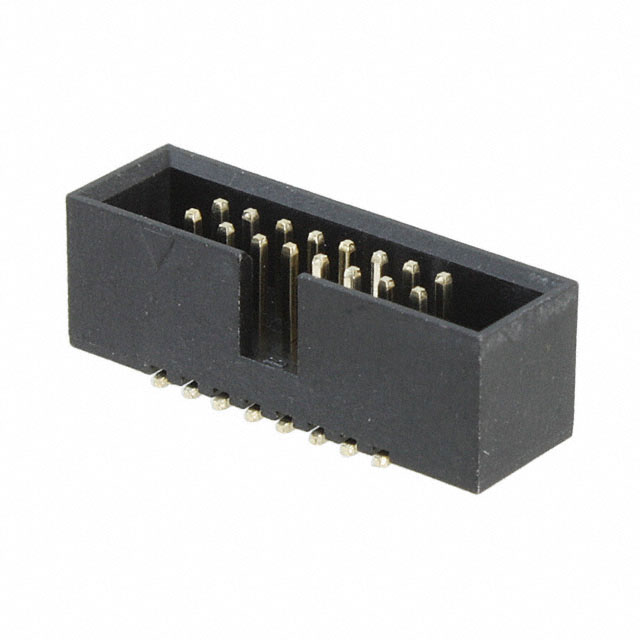

CONN HEADER SMD 16POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
3220-16-0300-00
ActiveCnC Tech, LLC
CONN HEADER SMD 16POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3220-16-0300-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.4 mm |
| Insulation Height [z] | 0.213 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
3220-16 Series
| Part | Insulation Height | Insulation Height [z] | Contact Finish - Mating | Number of Rows | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Insulation Color | Contact Finish Thickness - Mating | Contact Finish - Post | Termination | Material Flammability Rating | Contact Shape | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Material | Fastening Type | Contact Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Insulation Material | Style | Shrouding | Features | Mounting Type | Voltage Rating | Insulation Height [z] | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | 5.4 mm | 0.213 in | Gold | 2 | 0.05 in | 1.27 mm | Header | Black | Flash | Gold | Solder | UL94 V-0 | Square | 16 | 0.05 in | 1.27 mm | Brass | Push-Pull | Male Pin | All | -40 °C | 105 ░C | Flash | Nylon 9T Polyamide (PA9T) | Board to Cable/Wire | Shrouded - 4 Wall | Keying Slot | Surface Mount | 50 VAC | |||
CnC Tech, LLC | 5.4 mm | 0.213 in | Gold | 2 | 0.05 in | 1.27 mm | Header | Black | Flash | Gold | Solder | UL94 V-0 | Square | 16 | 0.05 in | 1.27 mm | Brass | Push-Pull | Male Pin | All | -40 °C | 105 ░C | Flash | Nylon 9T Polyamide (PA9T) | Board to Cable/Wire | Shrouded - 4 Wall | Keying Slot Pick and Place | Surface Mount | 50 VAC | |||
CnC Tech, LLC | 0.201 " | Gold | 2 | 0.05 in | 1.27 mm | Header | Black | Flash | Solder | UL94 V-0 | Square | 16 | 0.05 in | 1.27 mm | Brass | Push-Pull | Male Pin | All | -40 °C | 105 ░C | Nylon 9T Polyamide (PA9T) | Board to Cable/Wire | Shrouded - 4 Wall | Keying Slot | Through Hole Right Angle | 50 VAC | 5.1 mm | 0.083 in | 2.11 mm | |||
CnC Tech, LLC | 5.4 mm | 0.213 in | Gold | 2 | 0.05 in | 1.27 mm | Header | Black | Flash | Solder | UL94 V-0 | Square | 16 | 0.05 in | 1.27 mm | Brass | Push-Pull | Male Pin | All | -40 °C | 105 ░C | Nylon 9T Polyamide (PA9T) | Board to Cable/Wire | Shrouded - 4 Wall | Keying Slot | Through Hole | 50 VAC | 0.083 in | 2.11 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.17 | |
| 10 | $ 0.99 | |||
| 80 | $ 0.89 | |||
| 440 | $ 0.73 | |||
| 2400 | $ 0.59 | |||
| 7200 | $ 0.57 | |||
| 12000 | $ 0.53 | |||
Description
General part information
3220-16 Series
Connector Header Surface Mount 16 position 0.050" (1.27mm)
