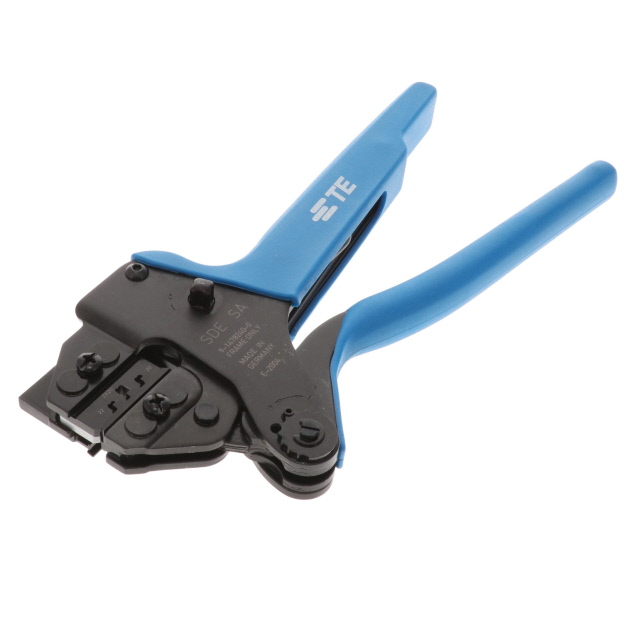

2217267-1

Active

TE Application Tooling

SDE COMMERCIAL TOOL/DIE

Search across all available documentation for this part.

Active

TE Application Tooling

SDE COMMERCIAL TOOL/DIE

Technical Specifications

Parameters and characteristics for this part

Specification	2217267-1

For Use With/Related Products	Rectangular Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	20 AWG
Wire Gauge or Range - mm² [Max]	0.56 mm²
Wire Gauge or Range - mm² [Min]	0.34 mm²

Part	Tool Type	Wire Entry Location	For Use With/Related Products	Ratcheting	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]
TE Application Tooling 2217267-2	Hand Crimper	Side Entry	Rectangular Contacts	Ratchet
TE Application Tooling 2217267-1	Hand Crimper	Side Entry	Rectangular Contacts	Ratchet	20 AWG	22 AWG	0.56 mm²	0.34 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Rectangular Contacts
