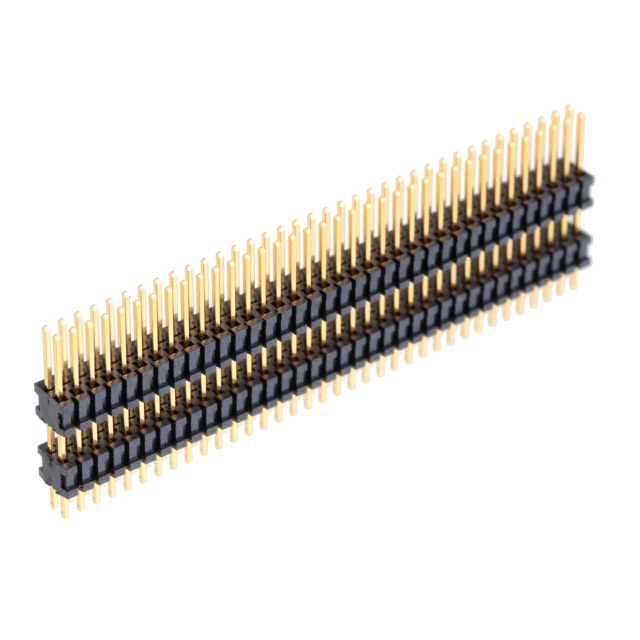

FW-36-04-G-D-300-200

Active

Samtec Inc.

CONN HDR 72POS 0.05 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 72POS 0.05 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	FW-36-04-G-D-300-200

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	14.986 mm
Length - Overall Pin [x]	0.59 in
Length - Post (Mating) [x]	0.2 in
Length - Post (Mating) [x]	5.08 mm
Length - Stack Height [x]	0.3 in
Length - Stack Height [x]	7.62 mm
Length - Tail [x]	2.286 mm
Length - Tail [x]	0.09 in
Mounting Type	Through Hole
Number of Positions	72
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Termination	Solder

Part	Length - Tail [x]	Length - Tail [x]	Mounting Type	Color	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Termination	Row Spacing	Row Spacing	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin
Samtec Inc. FW-36-04-L-D-400-075	2.286 mm	0.09 in	Through Hole	Black	72	0.4 in	10.16 mm	2	0.075 in	1.905 mm	Gold	0.05 in	1.27 mm	0.25 Ám	10 Áin	Solder	1.27 mm	0.05 in	0.565 in	14.351 mm
Samtec Inc. FW-36-04-G-D-410-160	2.286 mm	0.09 in	Through Hole	Black	72			2	0.16 in	4.064 mm	Gold	0.05 in	1.27 mm	0.25 Ám	10 Áin	Solder	1.27 mm	0.05 in	0.66 in		0.41 in	10.414 mm	16.764 mm
Samtec Inc. FW-36-04-G-D-300-200	2.286 mm	0.09 in	Through Hole	Black	72	0.3 in	7.62 mm	2	0.2 in	5.08 mm	Gold	0.05 in	1.27 mm	0.25 Ám	10 Áin	Solder	1.27 mm	0.05 in	0.59 in	14.986 mm
