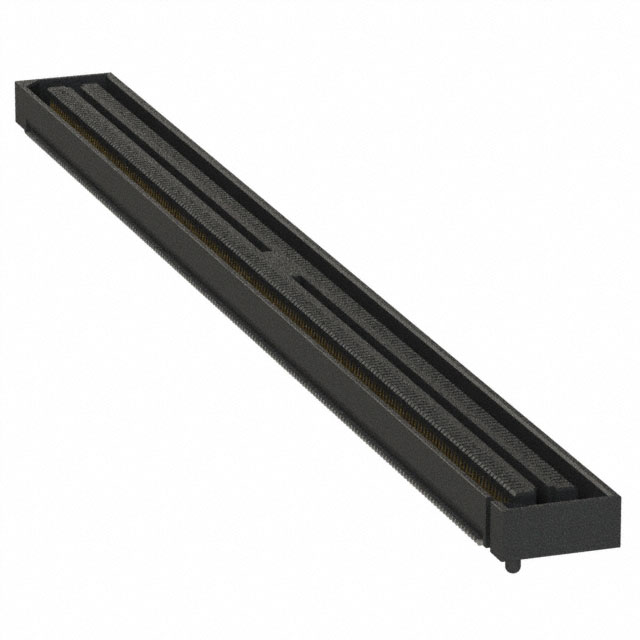

BSH-180-01-L-D-A

Active

Samtec Inc.

CONN SOCKET 360POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 360POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-180-01-L-D-A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	360
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Mounting Type	Connector Type
Samtec Inc. BSH-180-01-L-D-A	0.5 mm	0.02 in	Board Guide	5 mm	2	3.25 mm	0.128 in	10 Áin	0.25 Ám	360	Gold	Surface Mount	Socket Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

360 Position Connector Socket, Center Strip Contacts Surface Mount Gold
