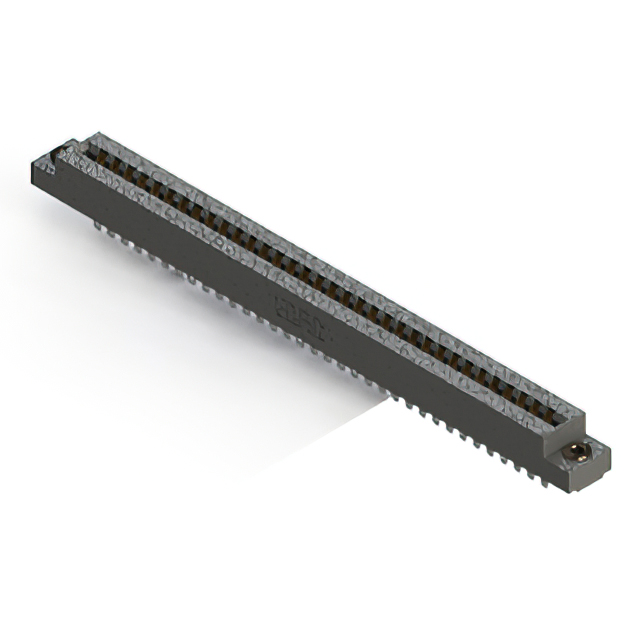

356-034-500-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-034-500-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-034-500-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
356-034 Series
| Part | Mounting Type | Material - Insulation | Card Type | Number of Positions | Termination Rows | Number of Rows | Color | Read Out | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Type | Contact Material | Gender | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Panel Mount Through Hole | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | Copper Alloy | Female | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | |
EDAC Inc. | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Cantilever | Copper Alloy | Female | Gold | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | -40 °C | 105 ░C | ||
EDAC Inc. | Free Hanging (In-Line) | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Cantilever | Copper Alloy | Female | Gold | -40 °C | 105 ░C | ||||
EDAC Inc. | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Cantilever | Copper Alloy | Female | Gold | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | -40 °C | 105 ░C | ||
EDAC Inc. | Panel Mount Through Hole | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | Copper Alloy | Female | Gold | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Card Guides | ||
EDAC Inc. | Through Hole | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | Copper Alloy | Female | Gold | -40 °C | 105 ░C | ||||
EDAC Inc. | Panel Mount Through Hole | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | Copper Alloy | Female | Gold | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | -40 °C | 105 ░C | |
EDAC Inc. | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Cantilever | Copper Alloy | Female | Gold | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | ||||
EDAC Inc. | Panel Mount Through Hole | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | Copper Alloy | Female | Gold | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Card Guides | ||
EDAC Inc. | Polyester Thermoplastic | Non Specified - Dual Edge | 68 | 1 | 2 | Black | Dual | 0.156 in | 3.96 mm | 34 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Cantilever | Copper Alloy | Female | Tin | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-034 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
