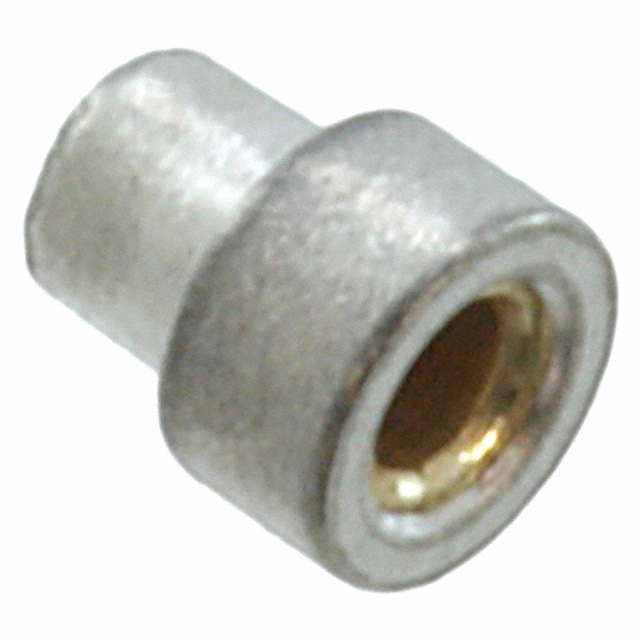

5280-0-67-80-16-27-40-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 SOLDER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	5280-0-67-80-16-27-40-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Features	Knockout Bottom (Organic Fiber Plug®)
Flange Diameter [diameter]	2.16 mm
Flange Diameter [diameter]	0.085 in
Length - Overall [x]	0.1 "
Length - Overall [x]	2.54 mm
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	2.54 mm
Socket Depth	0.1 "
Tail Type	No Tail
Termination	Solder

Part	Tail Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Features	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 5280-0-15-80-16-80-40-0	No Tail	Tin	0.1 "	2.54 mm	2.54 mm	0.1 "	Solder	1.7 mm	0.067 "	-55 °C	125 °C	2.16 mm	0.085 in	Beryllium Copper	0.76 Ám	30 Áin	0.86 mm	0.034 "	0.56 mm	0.022 "
Mill-Max Manufacturing Corp. 5280-0-67-80-16-27-40-0	No Tail	Gold	0.1 "	2.54 mm	2.54 mm	0.1 "	Solder	1.7 mm	0.067 "	-55 °C	125 °C	2.16 mm	0.085 in	Beryllium Copper	0.76 Ám	30 Áin	0.86 mm	0.034 "	0.56 mm	0.022 "	Knockout Bottom (Organic Fiber Plug®)	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 5280-0-15-80-16-27-40-0	No Tail	Gold	0.1 "	2.54 mm	2.54 mm	0.1 "	Solder	1.7 mm	0.067 "	-55 °C	125 °C	2.16 mm	0.085 in	Beryllium Copper	0.76 Ám	30 Áin	0.86 mm	0.034 "	0.56 mm	0.022 "
Mill-Max Manufacturing Corp. 5280-0-15-01-16-27-40-0	No Tail	Gold	0.1 "	2.54 mm	2.54 mm	0.1 "	Solder	1.7 mm	0.067 "	-55 °C	125 °C	2.16 mm	0.085 in	Beryllium Copper	0.76 Ám	30 Áin	0.86 mm	0.034 "	0.56 mm	0.022 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Solder
